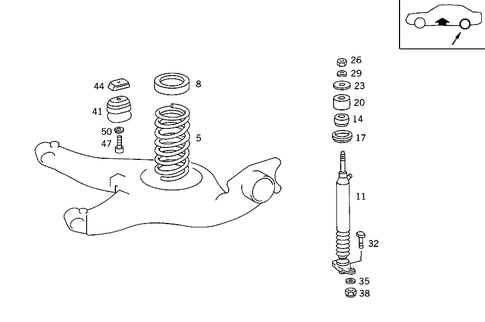

Rear Springs and Suspension Used with Self-Levelling Device for 1986 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
5
Rear Spring
Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.045 24 HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35- 123 324 06 04 115 325 23 44 115 325 24 44
.
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 19 HITCHING MECHANISM 7 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -25 115 324 27 04 115 325 23 44 115 325 24 44 26- 123 324 06 04 115 325 22 44 115 325 23 44 ==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 19 HITCHING MECHANISM 7 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -25 115 324 27 04 115 325 23 44 115 325 24 44 26- 123 324 06 04 115 325 22 44 115 325 23 44 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.045 24 HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35- 123 324 06 04 115 325 23 44 115 325 24 44
.
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 19 HITCHING MECHANISM 7 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -25 115 324 27 04 115 325 23 44 115 325 24 44 26- 123 324 06 04 115 325 22 44 115 325 23 44 ==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS SPECIAL EQUIPMENT POINTS 126.045 MBSA 19 HITCHING MECHANISM 7 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -25 115 324 27 04 115 325 23 44 115 325 24 44 26- 123 324 06 04 115 325 22 44 115 325 23 44 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A428208
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS SPECIAL EQUIPMENT POINTS
126.045 24 HITCHING MECHANISM 7
COOL BOX 6
AUTOMOBILE TELEPHON 3
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-25 115 324 27 04 115 325 23 44 115 325 24 44
.
26-34 123 324 06 04 115 325 22 44 115 325 23 44
35- 123 324 06 04 115 325 23 44 115 325 24 44
.
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-29 123 324 27 04 115 325 22 44 115 325 23 44
30-36 123 324 27 04 115 325 23 44 115 325 24 44
37- 123 324 27 04 115 325 24 44
==============================================================================================================================
Description: As required.
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (9.5 mm). With spring color code in red 9.5 mm;1185-1220 kg.
MSRP $32.00
$24.70
MSRP $32.00
$24.70
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (19 mm). With spring color code in red 19 mm;1250-1286 kg,1327-1359 kg 1496-1540 kg.
MSRP $29.50
$22.75
MSRP $29.50
$22.75
8
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 2 (14 mm). With spring color code in red 14 mm;1220-1250 kg,1286-1327 kg.
MSRP $63.00
$48.38
MSRP $63.00
$48.38
14
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Hydropneumatic spring leg to frame.
MSRP $3.90
$2.99
MSRP $3.90
$2.99
17
MSRP $14.00
$10.92
20
MSRP $6.00
$4.68
23
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to frame. Bumper to body. Hydropneumatic spring leg to frame. Shock absorber to rear axle.
MSRP $3.70
$2.86
MSRP $3.70
$2.86
26
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
MSRP $3.70
$2.86
MSRP $3.70
$2.86
32
Screw Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
35
Window Mercedes-Benz
Mercedes-Benz Description: Shock absorber to rear axle. Hydropneumatic spring leg to rear axle.
38
Nut Mercedes-Benz
Mercedes-Benz Description: BRAKE BRACING TO CONTROL ARMDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 17mm. STOP TO REAR AXLEDiameter: 10mmStrength / hardness class: 8Thread code letter: MThread pitch: 1,5mmWidth across flats: 1 ...
41
MSRP $15.00
$11.44
47
Cap Screw Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR '88
Description: Stop buffer to frame. M8X20
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Pressure line to rotary actuator. Bracket to fire wall. Bracket on spring link m 8x20. Bracket to support. Line to torsion bar bearing, front left. Clamp to oil pan. Bracket on spring link m8 x 20. Plate to spring control arm.
MSRP $4.40
$3.38
MSRP $4.40
$3.38
47
Cap Screw Mercedes-Benz
Mercedes-Benz Description: M8X30-10.9
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
MSRP $6.00
$4.55
MSRP $6.00
$4.55
