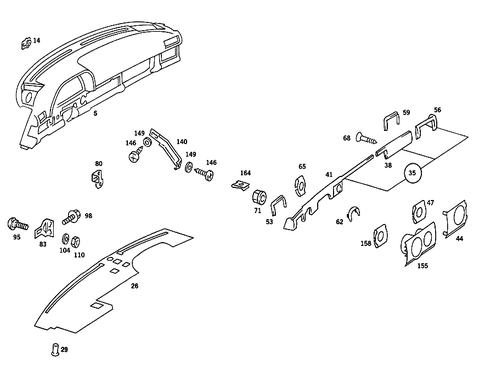

Instrument Panel for 1986 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
5
Instrument Panel
Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
ORDER ADDITIONALLY 1 X 1266890683
ORDER ADDITIONALLY 1 X 1266890683
Description: Used without co-driver's airbag.
5
Instrument Panel Mercedes-Benz
Mercedes-Benz Notes: ORDER ADDITIONALLY 1 X 1266890683
IN CASE OF ADJUSTABLE STEERING,TAILOR FELT STRIP TO CUT-OUT IN STEERING COLUMN JACKET TUBE
IN CASE OF ADJUSTABLE STEERING,TAILOR FELT STRIP TO CUT-OUT IN STEERING COLUMN JACKET TUBE
14
29
Rivet Mercedes-Benz
Mercedes-Benz Description: Soundproofing
diameter: 4mm. LOWER PART
Diameter: 4mm. FOOTREST
Diameter: 4mm.
diameter: 4mm. LOWER PART
Diameter: 4mm. FOOTREST
Diameter: 4mm.
35
35
44
MSRP $32.00
$24.70
47
MSRP $2.00
$1.56
71
Nut Mercedes-Benz
Mercedes-Benz Description: Garnish moulding to instrument panel. Garnish moulding to covering. Bottom garnish moulding to front door, rear.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
83
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Instrument panel to front panel pillar.
95
MSRP $15.50
$12.09
98
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Instrument panel to front panel pillar. M6x16-8.8. Foot operated parking brake to bracket. Hydraulic unit to bracket. Screening to partition panel.
104
Window Mercedes-Benz
Mercedes-Benz Description: Instrument panel to front panel pillar. Pistol-grip hand brake to front panel pillar. Instrument panel to bracket. Instrument panel to frame. Door plate,rear.
110
Nut Mercedes-Benz
Mercedes-Benz Description: Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
119
125
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Garnish moulding to instrument panel. Garnish moulding to cross member,top. Interior cover plate.
128
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Handle to ratchet rod. Instrument panel to cowl.
MSRP $3.50
$2.73
MSRP $3.50
$2.73
146
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Fire wall bracing to support. Central left and right rear ducts to main floor. Covering to instrument panel 4.2x13. Covering to instrument panel,bottom. Strut to instrument panel. Rear cross member. Bottom covering in housing b 4.2x13. Housing to tunnel. Air conditioning automatics electronic blower regulator.
146
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.17
MSRP $1.50
$1.17
149
Window Mercedes-Benz
Mercedes-Benz Description: Strut to haeter case. Front fender to front baffle. For ornamental bar at body rear end, lateral. For ornamental bar at rear part, lateral.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
155
Escutcheon Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR '89
UP TO END OF MODEL YEAR '89
Description: Light rotary switch.
155
164
MSRP $4.20
$3.25
173
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Support. Covering to instrument panel 2.9x25. Loudspeaker with covering to hat tray.
176
Clip-Type Nut Mercedes-Benz
Mercedes-Benz Description: Covering to instrument panel. Windshield defroster. Loudspeaker with covering to hat tray. Garnish moulding to front fender.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
191
Screw Mercedes-Benz
Mercedes-Benz Description: Covering to air duct. Grab handle to door lining. Lower panelling to door panelling. Control unit to end duct.
