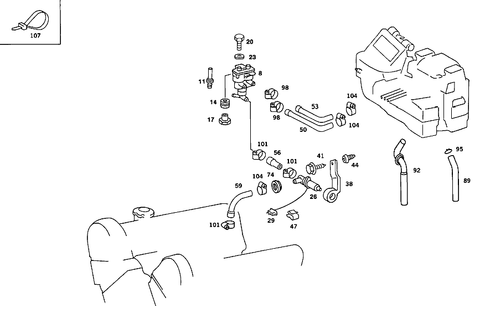

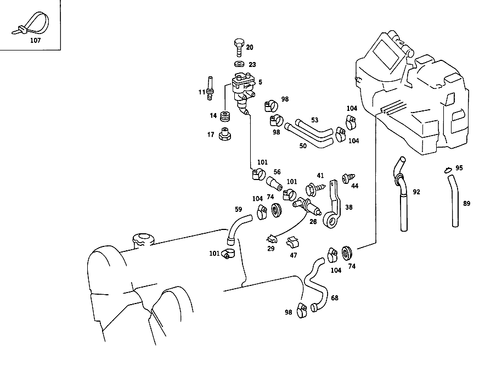

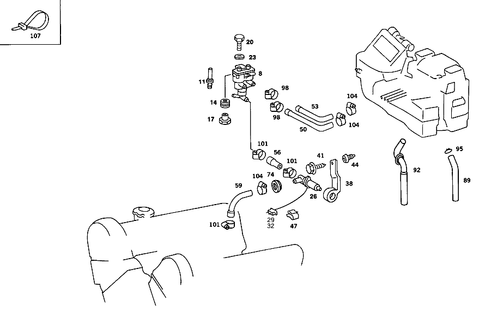

Heating Water Connection for 1986 Mercedes-Benz 560SEC

5

Valve

126-830-00-84

Mercedes-Benz

Description: (double water valve),inboard heating. (double water valve),electromagnetic.

View Details

5

Valve

000-830-18-84

Mercedes-Benz

Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER

Description: (double water valve) windshield & inboard heating. (double water valve),electromagnetic. (double water valve),for inboard heating,used with autom.air conditioner.

View Details

8

Valve

000-830-37-84

Mercedes-Benz

Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER

Description: (double water valve) windshield & inboard heating. (water valve),electromagnetic.

View Details

8

Valve

000-830-38-84

Mercedes-Benz

Description: (double water valve) windshield & inboard heating. (double water valve),electromagnetic.

View Details

11

Lift Solenoid

000-835-06-44

Mercedes-Benz

View Details

14

Feed-Through Grommet

000-997-22-81

Mercedes-Benz

MSRP $4.20

$3.25

MSRP $4.20

$3.25

17

Threaded Bushing

126-984-03-25

Mercedes-Benz

Description: Water valve to bracket.

View Details

20

Screw

933006208

Mercedes-Benz

Description: Double water valve to bracket at inside central part.

View Details

23

Spring Washer

000137-006204

Mercedes-Benz

MSRP $1.20

$0.91

MSRP $1.20

$0.91

26

Circulation Pump

000-835-69-64

Mercedes-Benz

Description: Heating,at inside central part.

View Details

29

Coupling, Mechanical

009-545-40-28

Mercedes-Benz

Description: Bipolar.

View Details

38

Bracket

126-830-18-14

Mercedes-Benz

Description: Circulation pump.

View Details

41

Tapping Screw

000000-000535

Mercedes-Benz

MSRP $5.50

$4.16

MSRP $5.50

$4.16

44

Dowel

673-988-00-25

Mercedes-Benz

Description: Panelling to floor.

MSRP $6.25

$4.81

MSRP $6.25

$4.81

47

Clamp

002-988-48-78

Mercedes-Benz

View Details

50

Hose

126-832-02-94

Mercedes-Benz

Description: Between heat exchanger and water valve,left.

MSRP $78.00

$59.99

MSRP $78.00

$59.99

53

Hose

126-832-03-94

Mercedes-Benz

Description: Between heat exchanger and water valve ,right. Between heat exchanger and water valve,left.

MSRP $42.50

$33.15

MSRP $42.50

$33.15

56

Hose

463-501-63-82

Mercedes-Benz

Description: Between water valve and recirculating pump. From water valve to recirculating pump.

MSRP $9.75

$7.54

MSRP $9.75

$7.54

59

Hose

126-832-12-94

Mercedes-Benz

Description: Between recirculating pump and engine. From recirculating pump to engine.

MSRP $6.50

$4.94

MSRP $6.50

$4.94

68

Hose

126-832-10-94

Mercedes-Benz

Description: Between engine and heat exchanger.

MSRP $42.00

$32.50

MSRP $42.00

$32.50

74

Grommet

126-997-15-81

Mercedes-Benz

Notes: NO LONGER AVAILABLE

View Details

89

Hose

1268300396

Mercedes-Benz

View Details

89

Hose

126-830-11-96

Mercedes-Benz

Description: Condensed water drain,left.

MSRP $32.50

$25.35

MSRP $32.50

$25.35

92

Hose

126-830-04-96

Mercedes-Benz

Description: Condensed water drain,right. Condensed water drain,left.

View Details

95

Clamping Ring

126-995-00-46

Mercedes-Benz

Description: Condensed water drain.

MSRP $1.20

$0.91

MSRP $1.20

$0.91

98

69970390 - Heating and Ventilation: Clamp for Mercedes-Benz Image

Hose Clamp W Worm Drive

006-997-03-90

Mercedes-Benz

Description: Cooling water hose to radiator. 23-30 mm. Fuel hose. 23-30 mm. From oil tank to pump. 23-30 mm. Hose to water valve 20-30 mm. 23-30 mm. Filling hose to radiator. 23-30 mm. From engine to heat exchanger l 23-30. 23-30 mm.

MSRP $7.00

$5.46

MSRP $7.00

$5.46

101

Clamp

000000-000667

Mercedes-Benz

Description: 20 - 32 MM. 23-30 MMDiameter: 20-32mmMaterial thickness: 1mmWidth across flats: SW8. Between piping and circulation pump. 23-30 MMDiameter: 20-32mmMaterial thickness: 1mmWidth across flats: SW8. FROM ENGINE TO CHECK VALVE. 23-30 MMDiameter: 20-32mmMaterial ...

MSRP $4.50

$3.51

MSRP $4.50

$3.51

104

Hose Clamp

005-997-01-90

Mercedes-Benz

Description: 16-24mm.

MSRP $10.50

$8.19

MSRP $10.50

$8.19

107

Cable Tie

001-997-43-90

Mercedes-Benz

Description: Adapter cable. 9x249mm. Bracket. 9x249mm.

MSRP $4.90

$3.77

MSRP $4.90

$3.77

110

Heat Exchanger

126-830-02-61

Mercedes-Benz

Description: Windshield heating. Below windshield.

View Details

113

Clamp

126-988-48-78

Mercedes-Benz

Description: Windshield heating. Below windshield.

View Details

116

Thermostat Valve

126-830-04-84

Mercedes-Benz

Description: (thermo-valve),windshield heater. At central inside part.

MSRP $170.00

$107.95

MSRP $170.00

$107.95

119

Seal

123-827-00-98

Mercedes-Benz

Description: (thermo-valve),windshield heater. At central inside part. Air-blast nozzle breather fitting. Alarm unit to bracket.

MSRP $13.00

$10.01

MSRP $13.00

$10.01

122

Tapping Screw

914128-004303

Mercedes-Benz

Description: St4.8x9.5.

MSRP $1.40

$1.04

MSRP $1.40

$1.04

125

Hexagon Nut

910112-005000-64

Mercedes-Benz

View Details

128

Hose

000000-000734-64

Mercedes-Benz

Notes: ORDER BY THE METER

Description: FROM EXPANSION TANK TO ENGINE 1200 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO ENGINE 1575 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO RAD ...

MSRP $50.00

$39.00

MSRP $50.00

$39.00

131

Hose

126-830-13-96

Mercedes-Benz

Notes: NO LONGER AVAILABLE

Description: Windshield heater feed. At central part below windshield.

View Details

134
