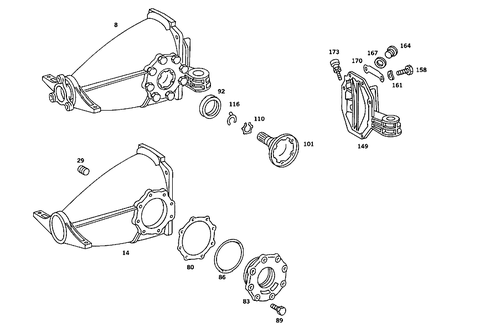

Rear Axle Housing with Differential for 1986 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
8
Axle Housing
Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Asr 1:2.65.
8
Axle Housing Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Rear axle housing with differential abs/ags 1:2.65.
14
Axle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
14
Axle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
29
Screw Plug Mercedes-Benz
Mercedes-Benz Description: M24x1,5. Oil refilling. For oil drain and oil filler. For oil filler, transmission. (for oil drain and oil filling). (oil filling and oil drain at transmission). For filling in oil or draining off oil resp. At transmission for filling in oil up to transmission 6515822. For oil drain and oil tilling.
35
Differential Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Less ring gear and pinion.
35
Differential Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Less ring gear and pinion.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.4 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.6 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 2.8 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.5 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.1 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 4.0 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 2.9 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.2 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3.3 mm.
41
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
WITH LINING ON ONE SIDE
WITH LINING ON ONE SIDE
Description: As required 3 mm.
44
Friction Washer Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Less lining. With 5 shackles.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.3 mm. As required 1.30 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.35 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.40 mm. As required 1.4 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.65 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.45 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.55 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.7 mm. As required 1.70 mm.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.5mm. As required 1.50 mm.
47
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: With lining on both sides.
47
Thrust Plate Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.6mm. As required 1.60 mm.
50
Differential Side Gear Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Used without automatic locking differential (asd).
50
Rear Diff Side Gear Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Only used with asd.
65
68
74
Tapered Roller Bearing Mercedes-Benz
Mercedes-Benz Description: Ring gear bearing. Differential gear. Right.
MSRP $195.00
$145.08
MSRP $195.00
$145.08
83
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Bearing cover.
83
Cover Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Bearing cover.
86
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Bearing cover to axle housing. Inner joint. Outer left.
MSRP $5.50
$4.29
MSRP $5.50
$4.29
89
MSRP $1.70
$1.27
92
Sealing Ring Mercedes-Benz
Mercedes-Benz Notes: FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: Axle shaft. Interior flange.
MSRP $16.50
$12.87
MSRP $16.50
$12.87
92
Sealing Ring Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Interior flange.
MSRP $26.00
$20.15
MSRP $26.00
$20.15
101
101
Flange Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: Inside.
110
Spacer Washer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: As required 2.8 mm. As required 2.70 mm. 2.80 mm as required.
116
Snap Ring Mercedes-Benz
Mercedes-Benz Description: As required 1.75 mm. Axle shaft flange to axle housing.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
119
Adjusting Washer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.6mm. As required 1,6 mm.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,2 mm.
119
119
Adjusting Washer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.5mm. As required 1,5 mm.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,1 mm.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,7 mm.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required.
119
Adjusting Washer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,4 mm.
119
Shim Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,0 mm.
119
Window Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1.8mm. As required 1,8 mm.
119
Adjusting Washer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
ONLY FOR USE WITH ACCELERATION SKID CONTROL (A S R)
Description: As required 1,3 mm.
122
MSRP $122.00
$92.71
125
Spacer Bush Mercedes-Benz
Mercedes-Benz Description: Pinion bearing. Only used with asd. Drive pinion.
MSRP $12.00
$9.10
MSRP $12.00
$9.10
128
Friction Washer Mercedes-Benz
Mercedes-Benz Description: Drive pinion. Pinion bearing. Only used with asd.
MSRP $3.00
$2.34
MSRP $3.00
$2.34
131
Tapered Roller Bearing Mercedes-Benz
Mercedes-Benz Description: Drive pinion bearing. Outer bevel gear.
MSRP $42.50
$33.15
MSRP $42.50
$33.15
137
MSRP $11.50
$8.71
137
MSRP $34.50
$26.65
143
Collar Nut, Ra Transmission Mercedes-Benz
Mercedes-Benz Description: M26X1.5
Diameter: 26mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 38mm
Width across flats: 30mm. Joint flange to bevel gear. Screw fitting joint flange. Flange to drive pinion. Only used with asd.
Diameter: 26mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 38mm
Width across flats: 30mm. Joint flange to bevel gear. Screw fitting joint flange. Flange to drive pinion. Only used with asd.
MSRP $7.50
$5.85
MSRP $7.50
$5.85
167
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: OIL DRAIN, PORTAL AXLE LH
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left housing
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left portal transmission
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm.
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left housing
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm. To left portal transmission
Strength / hardness class: AL
Inside diameter: 24mm
Outside diameter: 29mm
Material thickness: 2mm.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
173
Breather Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Rear axle housing with differential. M 14 x 1,5. Differential gear. Right m 14x1,5.
MSRP $94.00
$71.12
MSRP $94.00
$71.12
