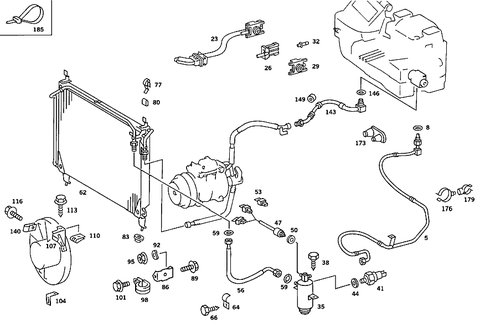

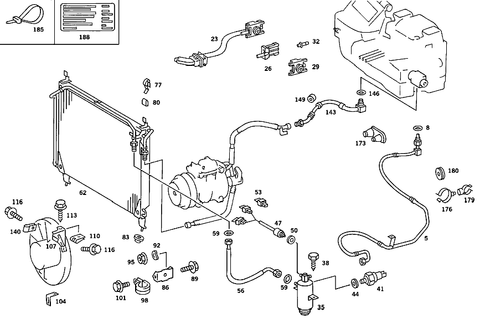

Refrigerant Line Arrangement for 1986 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
8
Sealing Ring
Mercedes-Benz
Mercedes-Benz Description: Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
MSRP $3.70
$2.86
MSRP $3.70
$2.86
11
Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: (suction line),from expansion valve to fire wall.
14
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
29
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Inductive pickup to 008 545 08 28. Belt lock,left front seat to 008 545 08 28. Only for use with air conditioner. Throttle body to 008 545 08 28. To 008 545 08 28, 008 545 09 28. To 008 545 10 28.
32
Plug Pin Mercedes-Benz
Mercedes-Benz Description: 4MM. 4.0mm2. Fan. 4.0mm2. TO 008 545 10 28. 4.0mm2.
MSRP $2.70
$2.08
MSRP $2.70
$2.08
35
MSRP $236.00
$174.84
38
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
MSRP $2.00
$1.56
MSRP $2.00
$1.56
41
MSRP $99.00
$74.93
44
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Pressure switch to liquid tank used for additional blower. 9.0 x 1.8 mm. Pressure switch to liquid tank used for compressor. 9.0 x 1.8 mm. At liquid tank. 9.0 x 1.8 mm. Refrigerant reservoir valve. 9.0 X 1.8 MM. Sensor. 9.0 x 1.8 mm.
47
Switch Mercedes-Benz
Mercedes-Benz Description: At liquid tank. 16 bar. Additional blower. 16 bar. Thermostat to liquid tank. 16 bar.
MSRP $72.00
$55.47
MSRP $72.00
$55.47
53
Protective Cap Mercedes-Benz
Mercedes-Benz Description: Pressure switch to liquid tank used for additional blower. Door contact switch. Front door.
56
Line Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR R.S.A.
Description: From condenser to liquid tank.
MSRP $27.00
$20.80
MSRP $27.00
$20.80
64
Clamp Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
77
Clamp Mercedes-Benz
Mercedes-Benz Description: Condenser to stiffening and to front cross member. Condenser to front central stiffening and to support,bottom.
MSRP $5.25
$4.03
MSRP $5.25
$4.03
80
Intermediate Layer Mercedes-Benz
Mercedes-Benz Description: Condenser to stiffening and to front cross member. Condenser to front central stiffening and to support,bottom.
MSRP $2.20
$1.69
MSRP $2.20
$1.69
83
Grommet Mercedes-Benz
Mercedes-Benz Description: Condenser to front central stiffening and to support,bottom.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
89
Screw Mercedes-Benz
Mercedes-Benz Description: Interior handle assembly to door. Ke-jetronic control box bracket. Lock to door.
95
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$2.60
MSRP $3.40
$2.60
110
Nut Mercedes-Benz
Mercedes-Benz Description: Additional blower to front central stiffening. Front fender to wheelhouse. Bracket to cross member.
113
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Bz6,3x13. Bracket mounting. Control unit to the right of legroom.
116
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Additional blower to front central stiffening. Bracket to auxiliary fan.
MSRP $2.40
$1.82
MSRP $2.40
$1.82
140
Fastening Clamp Mercedes-Benz
Mercedes-Benz Description: Additional blower to front central stiffening. Bracket to cross member.
143
Line Mercedes-Benz
Mercedes-Benz Description: From expansion valve to compressor pipe line. From evaporator to fuel cooler.
149
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Coolant line to connection fitting. Spacer. To hose. From engine to heat exchanger. Protection against scoring. Filling hose. To oil line. Feed line. Molded hose.
MSRP $10.50
$8.19
MSRP $10.50
$8.19
152
Pipeline Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: (delivery line),from expansion valve to fire wall.
158
Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From expansion valve to compressor pipe line.
161
MSRP $4.30
$3.35
164
Collar Sleeve Mercedes-Benz
Mercedes-Benz Description: Gearing to bracket. Partition-panel-to-compressor refrigerant line to wheelhouse. Pipe line to cross member. Condenser to stiffening and to front cross member. Line to fire wall.
170
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Light unit on reinforcement,front, bottom 4.8x19 mm. 4.8x19. Lighting unit to front fender. 4.8x19.
173
MSRP $6.25
$4.81
176
Hose Bracket Mercedes-Benz
Mercedes-Benz Description: Refrigerant line to fuel hose. Evaporator-to-compressor refrigerant line.
MSRP $5.25
$4.03
MSRP $5.25
$4.03
179
MSRP $5.50
$4.16
185
Cable Tie Mercedes-Benz
Mercedes-Benz Description: A0059971590
Diameter: -
Inside diameter: -
Outside diameter: 110mm
Material thickness: 1,4mm. 300 mm. At floor.
Diameter: -
Inside diameter: -
Outside diameter: 110mm
Material thickness: 1,4mm. 300 mm. At floor.
185
MSRP $4.90
$3.77
188
MSRP $12.00
$9.36
No.
Part # / Description / Price
Price
41
MSRP $99.00
$74.93
No.
Part # / Description / Price
Price
185
Binder Mercedes-Benz
Mercedes-Benz Description: 210X4.8mm
Diameter: -
Inside diameter: 1,5mm
Outside diameter: 50mm
Material thickness: 1,4mm.
Diameter: -
Inside diameter: 1,5mm
Outside diameter: 50mm
Material thickness: 1,4mm.
