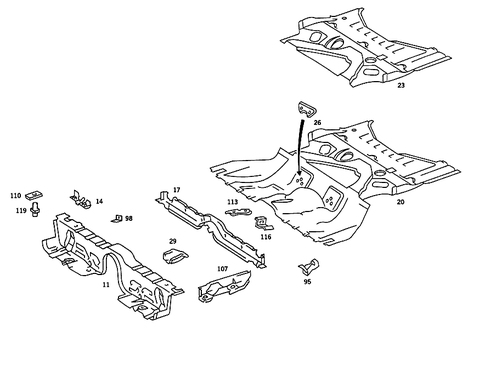

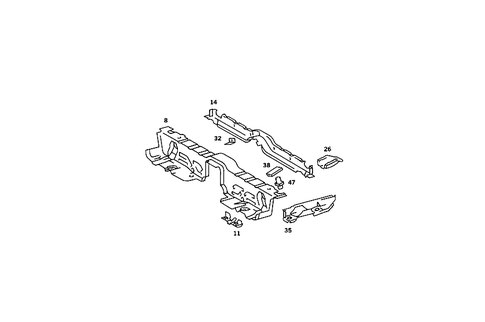

Rear End Floor for 1986 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
14
20
Rear Floor
Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Below rear seat bench,rear.
20
Rear Floor Mercedes-Benz
Mercedes-Benz Notes: NOT TO BE ORDERED FROM DBAG
ONLY FOR R.S.A.
ONLY FOR R.S.A.
Description: Below rear seat in its place,you may also use mercedes-benz part no.: 126 610 00 61.
23
Threaded Plate Mercedes-Benz
Mercedes-Benz Description: Safety belt to floor below rear seat. Safety belt mounting.
26
32
Reinforcement Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cable passage to cross member reinforcement below rear seat,right.
38
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Rear-subframe-mounting step bearing, front.
44
Bearing Bracket Mercedes-Benz
Mercedes-Benz Description: Parking brake intermediate lever to floor below rear seat bench.
50
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: NOT FOR R.S.A.
Description: Rear subframe mounting,rear;on floor below rear seat bench.
50
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: NOT TO BE ORDERED FROM DBAG
ONLY FOR R.S.A.
ONLY FOR R.S.A.
Description: Rear subframe mounting,rear;on floor below rear seat bench in its place,you may also use mercedes-benz part no.: 126 610 00 16.
56
56
59
Spare Wheel Well Mercedes-Benz
Mercedes-Benz Notes: ORDER ADDITIONALLY UP TO IDENT-NO.:
045 A 243516 044,046 A 268601
1 X 126 890 00 07
1 X 124 898 01 65
3 X 123 899 00 97
62
71
No.
Part # / Description / Price
Price
8
174
Reinforcement Mercedes-Benz
Mercedes-Benz Description: Between cross member below tail central part & right rear side member.
174
Reinforcement Mercedes-Benz
Mercedes-Benz Description: Between cross member below tail central part & left rear side member.
