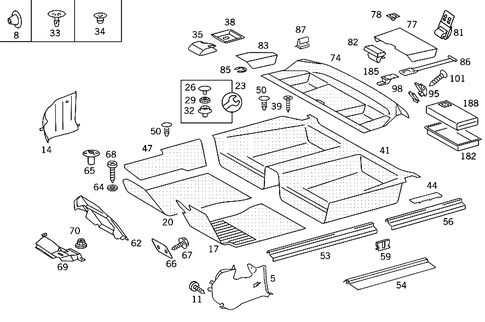

Front Panel Pillar Panelling, Lining on Floor, Hat Tray and First Aid Box for 1988 Mercedes-Benz 260E
No.
Part # / Description / Price
Price
11
Tapping Screw
Mercedes-Benz
Mercedes-Benz Description: Warning indicator. Airbag in glove compartment 3.5x13. Additional fuse box to front end. Bracket to fender. Carpet to rear floor,rear tunnel. Left rear entrance,on floor. Covering to instrument panel. Sun visors to front panel. Panelling to front panel.
26
Cap Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
IN CASE OF REPAIRS,EXCHANGE THE EXISTING LOWER PART OF FASTE NER BUTTON FOR PART NO. 123 988 00 81
IN CASE OF REPAIRS,EXCHANGE THE EXISTING LOWER PART OF FASTE NER BUTTON FOR PART NO. 123 988 00 81
Description: Black.
29
MSRP $4.00
$3.12
50
Grommet Mercedes-Benz
Mercedes-Benz Description: Entrance lining to side member. Covering to bracket. Rear flooring to side member. Upholstery fast. To backrest frame links. Lining on cross member below rear seat. Bracket to transmission tunnel. Lining to cross member. Rear panel. Used with thru-loading facility.
MSRP $2.50
$1.95
MSRP $2.50
$1.95
65
Snap Fastener Mercedes-Benz
Mercedes-Benz Description: Mounting plate to fire wall. Fire wall bracing to support. Mounting, loudspeaker.
68
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Fire wall bracing to support. Central left and right rear ducts to main floor. Covering to instrument panel 4.2x13. Covering to instrument panel,bottom. Strut to instrument panel. Rear cross member. Bottom covering in housing b 4.2x13. Housing to tunnel. Air conditioning automatics electronic blower regulator.
74
Trim Mercedes-Benz
Mercedes-Benz Description: Rear panel,top. Hat tray less headrests. Fabric/mb-tex/leather trim.
77
78
Symbol Sign Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Symbol plates to covering. First aid box.
85
MSRP $2.00
$1.56
98
MSRP $1.00
$0.78
101
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Covering to air duct and to instrument panel. Rubber mat to rear compartment floor. Sun visors to front panel. On special request. Housing to tunnel,rear b 4.2x19.
188
First-Aid Box Mercedes-Benz
Mercedes-Benz Description: Under seat, right front. (first aid bag). Sanitary equipment. Side panelling,rear. Trunk trim, left. First-aid kit (hard case)/first-aid kit (soft sided). Hat tray. In collapsible spare wheel disk. In luggage compartment,left.
No.
Part # / Description / Price
Price
62
Stay Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR 93
FROM MODEL YEAR 93
Description: On fire wall below front floor lining, left.
65
Snap Fastener Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR 93
Description: Mounting plate to fire wall. Fire wall bracing to support. Pedal assembly mount. Mounting, cover. Brake pedal. Fastening pedal assembly, rear. Instrument panel to fire wall. Instrument panel on steering. Insulation in fire wall.
67
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.17
MSRP $1.50
$1.17
84
Fastening Clip Mercedes-Benz
Mercedes-Benz Description: Front door interior cover plate. Mounting plate to fire wall. Outside sealing rail on planking. Rear door edge guard section to wheel arch. Top covering to vertical flange interior part. Panelling to sealing rail,inside. Seal,at partition panel. On special request. Covering to partition panel,center.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
113
125
Screw Mercedes-Benz
Mercedes-Benz Description: M4X10
Diameter: 4mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Lateral left and right nozzles to instrument panel. Glove compartment lid interior part m 4x10. Microphone. Mounting, cover. Handle to glove compartment lid m 4x10.
Diameter: 4mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Lateral left and right nozzles to instrument panel. Glove compartment lid interior part m 4x10. Microphone. Mounting, cover. Handle to glove compartment lid m 4x10.
128
Tooth Lock Washer Mercedes-Benz
Mercedes-Benz Description: Escutcheon to mounting. Window crank to window regulator. Guide rail to front seat backrest frame. Mounting parts. Handwheel to shaft. Window cranks to window lifters.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
131
Screw Mercedes-Benz
Mercedes-Benz Description: Control module fastening driver seat. Control module mounting driver seat, left. Control module mounting driver seat, right. Control unit at backrest. Blinker sender unit mounting m4x14.
MSRP $4.40
$3.38
MSRP $4.40
$3.38
137
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
152
End Stop Mercedes-Benz
Mercedes-Benz Description: End stop used with rear end roller blind less headrests. End stop used with rear end roller blind with headrests.
