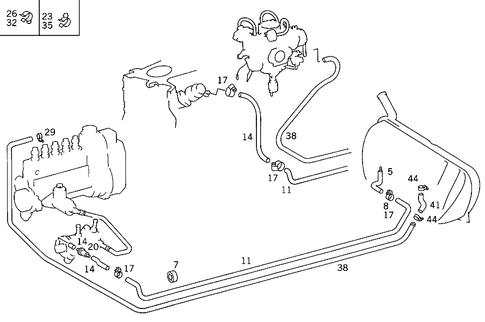

Fuel Lines for 1988 Mercedes-Benz 260E
No.
Part # / Description / Price
Price
48
MSRP $12.00
$9.36
56
Clamp
Mercedes-Benz
Mercedes-Benz Description: Between control valve and heat exchanger 21/9. From fuel tank to fuel pump 12 x 9 mm. Heat exchanger,left 21/9. From damper cage to fuel feed pump. From fuel tank to damper cage.
59
Clamp Mercedes-Benz
Mercedes-Benz Description: HOSE TO ACCUMULATOR & DAMPER CAGEDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. CONNECTING PIPE ON BRACKETDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM ACCUMULATOR TO DAMPER CAGE & VALVEDiameter: 11mmMaterial thickne ...
63
MSRP $208.00
$153.76
68
Fuel Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: From feed line to engine.
68
Fuel Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED W/ACCELERATION SKID CONTROL (A S R)
Description: From feed line to engine.
68
Fuel Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
FOR USE WITHOUT ACCELERATION SKID CONTROL (A S R)
Description: From feed line to engine.
95
Fuel Hose Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 859136
Description: From engine to return line.
107
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
MSRP $24.50
$18.85
MSRP $24.50
$18.85
107
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
116
Line Mercedes-Benz
Mercedes-Benz Description: From fuel accumulator to fuel tank. From fuel-oil pump to fuel-oil line.
128
Clamp Mercedes-Benz
Mercedes-Benz Description: Fuel line to floor,right. Fuel lines to vehicle floor. Brake line to cross member.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
131
Clamp Mercedes-Benz
Mercedes-Benz Description: To firewall and longitudinal member. Fuel line to floor,right. Brake and fuel lines to vehicle floor.
MSRP $2.00
$1.56
MSRP $2.00
$1.56
140
Tensioner Mercedes-Benz
Mercedes-Benz Description: Underbody left. Fuel line to floor,right. To mount fuel lines. In wheelhouse front left. To firewall and longitudinal member. Brake line to cross member.
MSRP $5.00
$3.90
MSRP $5.00
$3.90
149
Damping Strip Mercedes-Benz
Mercedes-Benz Description: Fuel lines to vehicle floor. Fuel lines on floor under rear seat.
155
Damping Strip Mercedes-Benz
Mercedes-Benz Description: Fuel lines to cowl. Fuel lines to front partition panel. Fuel line to side member.
176
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
179
Clamp Mercedes-Benz
Mercedes-Benz Description: Feed line to fire wall. Fuel lines on floor under fuel tank. Breather line under rear floor. (vent line) from activated charcoal filter to boot. Brake and fuel lines to vehicle floor.
182
Damping Strip Mercedes-Benz
Mercedes-Benz Description: Fuel lines under steering. Brake line fastening. Regeneration line to frame. To mount fuel lines.
MSRP $1.90
$1.43
MSRP $1.90
$1.43
188
197
Clamp Mercedes-Benz
Mercedes-Benz Description: On fire wall. Breather line to shock absorber dome, right. Brake line mounting from hydraulic unit to sep. Point. Fuel line. Leak and breather lines to floor above rear axle. Brake line fastening and brake wear indicator. Master cylinder to charge piston unit.
200
Rubber Guide Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 40 mm. Lines to fire wall,top left 20 mm. Fuel lines. Lines to frame 20 mm. Feed and return lines to fire wall reinforcement 20 mm.
