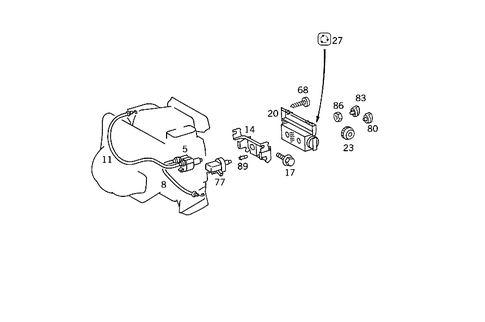

Heating/Air-Conditioner Operating Unit for 1988 Mercedes-Benz 260E
No.
Part # / Description / Price
Price
5
Operating Unit
Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH HEATING AUTOMATICS AND WITH TEMPMATIK
Description: Defroster/legroom nozzle operating unit.
8
Wire Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH HEATING AUTOMATICS AND WITH TEMPMATIK
Description: Legroom flap.
11
Wire Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH HEATING AUTOMATICS AND WITH TEMPMATIK
Description: Defroster flap.
14
Holder Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH TEMPMATIK
Description: Defroster/legroom nozzle operating unit.
20
Control System Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT DUST FILTER
Description: Automatic heating "krammerer". Automatic heating kammerer.
29
Operating Unit Mercedes-Benz
Mercedes-Benz Description: Air conditioner/tempmatic "bosch". Tempmatik less tempering central nozzle.
38
Operating Unit, AC System Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: To kammerer. Temperature selector. To 124 830 21 85. To 124 830 22 85.
38
Temperature Controller Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: To bosch. To 124 830 23 85. To 124 830 24 85.
44
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),defrosting.
47
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),overall ventilation.
50
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor on.
53
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),refrigerant compressor off.
56
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: (push button),"off".
59
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower maximum output control.
62
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Automatic blower control.
65
Pushbutton Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Blower minimum output control.
MSRP $20.00
$15.60
MSRP $20.00
$15.60
71
Bolt Mercedes-Benz
Mercedes-Benz Description: Operating unit to housing with tray. Covering to cushion. Less ashtray code 304.
74
Screw Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: Operating unit to housing with tray in the rear. Change-over valve to air conditioner case. Check valve to engine compartment partition panel. Valve block mounting. Valve to diagnosis box bracket. Switch to backrest frame. Valve block to plate.
80
MSRP $15.50
$12.09
83
Knob Mercedes-Benz
Mercedes-Benz Description: Defroster/legroom nozzle operating unit. Blower switch.
MSRP $15.50
$12.03
MSRP $15.50
$12.03
101
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Air-blast nozzle to heater casediameter: 3,5mmthread code letter: c. (water deflector) on front panel pillardiameter: 3,5mmthread code letter: c. ATTACHMENT, GRIDDiameter: 3,5mmThread code letter: C. ASHTRAY TO HOUSING 3.5X13Diameter: 3,5mmThread code lett ...
MSRP $1.50
$1.17
MSRP $1.50
$1.17
104
Fitting Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC HEATING
USED WITHOUT SLIDING ROOF
USED WITHOUT SLIDING ROOF
Description: Breathing,thru front panel pillar.
104
Fitting Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC HEATING
USED WITHOUT SLIDING ROOF
USED WITHOUT SLIDING ROOF
Description: Breathing,thru front panel pillar.
107
Seal Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC HEATING
USED WITHOUT SLIDING ROOF
USED WITHOUT SLIDING ROOF
Description: Breathing,thru front panel pillar.
113
Blower Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: Temperature sensor ventilation. Blower to air duct.
MSRP $82.00
$63.21
MSRP $82.00
$63.21
116
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: At blower;temperature sensor ventilation. Blower to air duct.
116
Holder Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: At blower;temperature sensor ventilation.
119
Bolt Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: Instrument panel,bottom right. Locking mechanism to panelling. Blower to air duct.
122
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: Between roof rail mounted temperature feeler hose and blower.
122
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: Between roof rail mounted temperature feeler hose and blower.
125
Dampening Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER, OR TEMPMATIK, OR SLIDING ROOF
Description: At blower;temperature sensor ventilation.
128
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M5x10.5. At blower;temperature sensor ventilation. Bracket to fire wall. Heat shield mounting. Control unit. Screening plates. Main floor,front right. Return line to partition panel.
MSRP $0.70
$0.52
MSRP $0.70
$0.52
131
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC HEATING
USED WITHOUT SLIDING ROOF
USED WITHOUT SLIDING ROOF
Description: Air-blast nozzle breather fitting.
134
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC HEATING
USED WITHOUT SLIDING ROOF
USED WITHOUT SLIDING ROOF
Description: From breather fitting to breather hose.
135
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between roof rail mounted temperature feeler & air-blast nozzle. From temperature sensor on roof rail to air-blast nozzle hose 1670 mm.
137
Hose Connection Fitting Mercedes-Benz
Mercedes-Benz Description: Between roof rail mounted temperature feeler & air-blast nozzle.
140
Clamp Mercedes-Benz
Mercedes-Benz Description: Line mounting. To tank drainage. Tank filler neck drain pipe. Vacuum line. Hose. Wiring harness fastening starter/ alternator.
