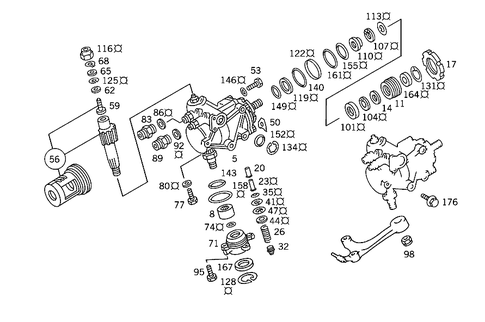

Steering Gear for 1991 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
32
35
Sealing Ring
Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO.: A 394304
Description: A18X22-CU
Strength / hardness class: CU
Inside diameter: 18mm
Outside diameter: 22mm
Material thickness: 1,5mm. Lambda probe bore. At steering gear 18x22. To 163 460 44 24/ 163 460 51 24. Oil drain screw. Srrew plug. Delivery line.
Strength / hardness class: CU
Inside diameter: 18mm
Outside diameter: 22mm
Material thickness: 1,5mm. Lambda probe bore. At steering gear 18x22. To 163 460 44 24/ 163 460 51 24. Oil drain screw. Srrew plug. Delivery line.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
41
MSRP $2.40
$1.82
44
MSRP $11.50
$8.71
47
MSRP $1.20
$0.91
62
Pressure Disk Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: 2.90 mm. 2.80 mm as required.
68
Retaining Ring Mercedes-Benz
Mercedes-Benz Description: ACCELERATOR PEDAL BEARING
Inside diameter: 12mm
Material thickness: 1mm. STEERING SHAFT TO BOX
Inside diameter: 12mm
Material thickness: 1mm. CONTROL SHAFT
Inside diameter: 12mm
Material thickness: 1mm. NUT LOCK
Inside diameter: 12mm
Material thickness: 1mm.
Inside diameter: 12mm
Material thickness: 1mm. STEERING SHAFT TO BOX
Inside diameter: 12mm
Material thickness: 1mm. CONTROL SHAFT
Inside diameter: 12mm
Material thickness: 1mm. NUT LOCK
Inside diameter: 12mm
Material thickness: 1mm.
74
MSRP $1.40
$1.04
80
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: FRONT AXLE BREATHINGStrength / hardness class: CUInside diameter: 8mmOutside diameter: 11,5mmMaterial thickness: 1mm. LEAK OIL LINE TO FRONT HYDROPNEUMATIC SPRING LEGStrength / hardness class: CUInside diameter: 8mmOutside diameter: 11,5mmMaterial thicknes ...
MSRP $2.20
$1.69
MSRP $2.20
$1.69
86
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: HOLLOW SCREWStrength / hardness class: CUInside diameter: 16mmOutside diameter: 20mmMaterial thickness: 1,5mm. TO 000 295 05 06Strength / hardness class: CUInside diameter: 16mmOutside diameter: 20mmMaterial thickness: 1,5mm. DELIVERY LINE TO PUMPStrength ...
MSRP $4.00
$3.12
MSRP $4.00
$3.12
89
Fitting Mercedes-Benz
Mercedes-Benz Description: Connecting hose to spring load accumulator. Oil line to spring load accumulator. Pressure line.
92
MSRP $4.90
$3.77
95
MSRP $2.70
$2.08
116
MSRP $4.70
$3.64
119
MSRP $3.40
$2.60
125
MSRP $3.00
$2.34
149
MSRP $3.20
$2.47
164
MSRP $15.50
$12.09
167
176
MSRP $110.00
$83.82
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
