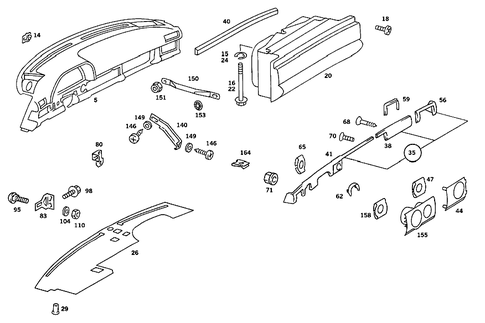

Instrument Panel & Body Parts Used for Co-Driver Airbag for 1991 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
5
Instrument Panel
Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
ORDER ADDITIONALLY UP TO IDENT NO. A 400433 , 1 X 126 689 06 83
UP TO END OF MODEL YEAR'88
ORDER ADDITIONALLY UP TO IDENT NO. A 400433 , 1 X 126 689 06 83
UP TO END OF MODEL YEAR'88
Description: Used without co-driver's airbag.
5
Instrument Panel Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
FROM MODEL YEAR'89
FROM MODEL YEAR'89
Description: With fixture for co-driver's airbag.
14
15
Retaining Washer Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'89
Description: Push rod to pedal.
MSRP $1.50
$1.17
MSRP $1.50
$1.17
16
Screw Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'89
Description: Only used with driver's and co-drivers airbag.
18
Cap Bolt W Cross Recess Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'89
Description: Airbag in glove compartment. Glove compartment lid stop.
29
Rivet Mercedes-Benz
Mercedes-Benz Description: Soundproofing
diameter: 4mm. LOWER PART
Diameter: 4mm. FOOTREST
Diameter: 4mm.
diameter: 4mm. LOWER PART
Diameter: 4mm. FOOTREST
Diameter: 4mm.
35
Trim Strip Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Set = 3 pieces. Knotted walnut. Adjustable steering column.
35
Parts Kit, Trim Bar Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'89
Description: Set = 3 pieces. Knotted walnut. Adjustable steering column.
38
Trim Strip Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Glove compartment lid knotted walnut.
44
MSRP $32.00
$24.70
47
MSRP $2.00
$1.56
56
Trim Strip Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Instrument panel,co-driver's side.
71
Nut Mercedes-Benz
Mercedes-Benz Description: Garnish moulding to instrument panel. Garnish moulding to covering. Bottom garnish moulding to front door, rear.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
80
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR'88
UP TO END OF MODEL YEAR'88
Description: Instrument panel,bottom right.
83
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR'88
UP TO END OF MODEL YEAR'88
Description: Instrument panel to front panel pillar.
83
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR'89
FROM MODEL YEAR'89
Description: Instrument panel,bottom right.
95
MSRP $15.50
$12.09
98
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Instrument panel to front panel pillar. M6x16-8.8. Foot operated parking brake to bracket. Hydraulic unit to bracket. Screening to partition panel.
104
Window Mercedes-Benz
Mercedes-Benz Description: Instrument panel to front panel pillar. Pistol-grip hand brake to front panel pillar. Instrument panel to bracket. Instrument panel to frame. Door plate,rear.
110
Nut Mercedes-Benz
Mercedes-Benz Description: Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
119
128
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Garnish moulding to instrument panel. Garnish moulding to cross member,top. Interior cover plate.
128
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Handle to ratchet rod. Instrument panel to cowl.
MSRP $3.50
$2.73
MSRP $3.50
$2.73
140
Strud Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Between heater case and instrument panel.
146
Tapping Screw Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Fire wall bracing to support. Central left and right rear ducts to main floor. Covering to instrument panel 4.2x13. Covering to instrument panel,bottom. Strut to instrument panel. Rear cross member. Bottom covering in housing b 4.2x13. Housing to tunnel. Air conditioning automatics electronic blower regulator.
146
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.17
MSRP $1.50
$1.17
149
Window Mercedes-Benz
Mercedes-Benz Description: Strut to haeter case. Front fender to front baffle. For ornamental bar at body rear end, lateral. For ornamental bar at rear part, lateral.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
155
164
MSRP $2.90
$2.21
164
Clip-Type Nut Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'88
Description: Bracing to transmission.
MSRP $4.20
$3.25
MSRP $4.20
$3.25
173
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Support. Covering to instrument panel 2.9x25. Loudspeaker with covering to hat tray.
176
Clip-Type Nut Mercedes-Benz
Mercedes-Benz Description: Covering to instrument panel. Windshield defroster. Loudspeaker with covering to hat tray. Garnish moulding to front fender.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
179
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR'86
UP TO END OF MODEL YEAR'86
Description: Instrument panel,bottom left. Below instrument panel,left.
182
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR'90
FROM MODEL YEAR'90
Description: Instrument panel,bottom right.
195
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Handle. 4,8x13. Coverings. 4,8x13. Bracket mounting aeg. 4,8x13. Angle to front cross member. 4,8x13. Plug to bracket. 4,8x13. Crank operated window bracing to lock side,top. 4,8x13. At sensor. 4,8x13. Left. 4,8x13. Bracket to wheelhouse. 4,8x13.
198
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR'87
FROM MODEL YEAR'87
Description: Bracket to steering column jacket tube.
198
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR'86
UP TO END OF MODEL YEAR'86
Description: Bracket to steering column jacket tube.
201
Spring Nut Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'86
Description: Control unit to c-pillar. Bracket to c-pillar. Anti-tow-away sensor. Bracket mounting aeg. Instrument panel to cross member. Abs control unit. Control unit to mounting plate. Bracket to wheelhouse. Electronic gas control unit. Instrument panel to knee protection pad.
MSRP $2.00
$1.56
MSRP $2.00
$1.56
204
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M6x20. At air conditioner case or heater case.
MSRP $3.50
$2.73
MSRP $3.50
$2.73
210
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Engine hood release cable handle to left front panel pillar. Covering below instrument panel,left. Engine hood release cable to front panel,bottom.
MSRP $14.50
$11.31
MSRP $14.50
$11.31
213
216
225
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Reinforcement and covering to elbow pipe.
228
Screw Mercedes-Benz
Mercedes-Benz Description: Reinforcement and covering to elbow pipe. Instrument panel to frame. Motor to base plate. Motor to window regulator.
231
Nut Holder Mercedes-Benz
Mercedes-Benz Description: Bracket to left wheelhouse. Rear seat bench backrest to rear panel. Wheel well reinforcement, left. Mounting to body.
MSRP $17.00
$13.00
MSRP $17.00
$13.00
237
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Instrument panel,left. At front panel,lateral left.
243
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Reinforcement to instrument panel bracket.
255
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
264
Plug-In Fastener Mercedes-Benz
Mercedes-Benz Description: Air duct to heater case. Covering to instrument panel,bottom. Covering to front panel pillar and heater case. Instrument panel lower part.
267
MSRP $2.40
$1.82
270
Clip Nut, Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Panelling to right front panel pillar. Radiator grille shell to engine hood. Left,right,and central covering to cross member. Grip handle to rear side part. Mounting, cover. Lighting unit to front fender. Pocket to door.
285
Screw Mercedes-Benz
Mercedes-Benz Description: Covering to air duct. Grab handle to door lining. Lower panelling to door panelling. Control unit to end duct.
