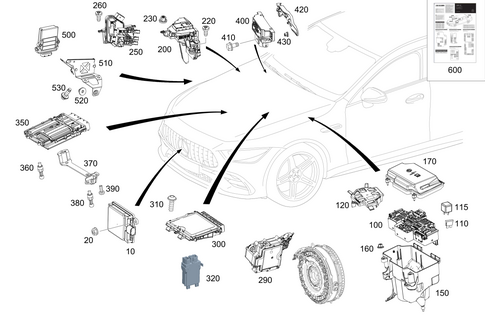

Control Units, Fuse Boxes and Relays in Engine Compartment for 2023 Mercedes-Benz AMG GT 63 S

10

9002839 - Electrical Equipment and Instruments: Control Unit for Mercedes-Benz Image

Control Unit ¹

Mercedes-Benz

Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

Description: Distance radar, behind radiator grille. DISTRONIC, behind radiator grille. Radar sensor for DISTRONIC.

MSRP $1,288.00

$924.00

MSRP $1,288.00

$924.00

20

Hexagon Nut

000-990-43-37

Mercedes-Benz

MSRP $1.00

$0.78

MSRP $1.00

$0.78

20

Hexagon Nut

000000-008290-65

Mercedes-Benz

MSRP $2.40

$1.82

MSRP $2.40

$1.82

100

Relay Unit

213-906-57-06

Mercedes-Benz

Description: Engine compartment.

MSRP $130.00

$99.06

MSRP $130.00

$99.06

110

Fuse

000000-007654-64

Mercedes-Benz

Description: Blade fuse ATO. Silver-plated. Electrical fuse. F239;f240. In fuse box. Mini. Engine compartment, 30 amp. Front, 30 amp. Headlamp wiper/washer 30a.

MSRP $6.50

$5.07

MSRP $6.50

$5.07

110

Fuse Link

000000-007659

Mercedes-Benz

Description: E-40A-S
Model 1: Maxi
Model 2: orange
Amps: 40A. Silver-plated. Blade fuse ATO. Blade fuse MAXI. In fuse box. Mini. Electrical fuse. 40 amp.

MSRP $4.50

$3.51

MSRP $4.50

$3.51

110

Fuse Link

000000-008701

Mercedes-Benz

Description: C-15A-S
Model 1: ATO
Model 2: blue
Amps: 15A. Blade fuse ATO. Silver-plated. Electrical fuse. In fuse box. Mini. Engine compartment, 15 amp. Rear, 15 amp.

MSRP $4.70

$3.64

MSRP $4.70

$3.64

110

Fuse Link

000000-007661

Mercedes-Benz

Description: E-60-S
Model 1: Maxi
Model 2: blue
Amps: 60A. Blade fuse ATO. In fuse box. Mini maxi. Blade fuse MAXI. Electrical fuse.

MSRP $3.00

$2.34

MSRP $3.00

$2.34

110

Fuse Link

000000-007664-64

Mercedes-Benz

Description: Mini f-5a-s. Electrical fuse MINI. In fuse box. Fuse box ATO. Blade fuse MINI.

MSRP $1.70

$1.30

MSRP $1.70

$1.30

110

Fuse

000000-007653-64

Mercedes-Benz

Description: C-25A-S
Model 1: ATO
Model 2: white
Amps: 25A. Blade fuse ATO. Silver-plated. Electrical fuse. In fuse box. Mini. Luggage compartment, 25 amp. Rear, 25 amp.

MSRP $3.20

$2.47

MSRP $3.20

$2.47

110

Fuse Link

000000-007665-64

Mercedes-Benz

Description: MINI. 7.5A
Model 1: Mini
Model 2: brown
Amps: 7,5A.

MSRP $3.50

$2.73

MSRP $3.50

$2.73

110

Fuse

000000-007650-64

Mercedes-Benz

Description: C-10A-S
Model 1: ATO
Model 2: red
Amps: 10A. Blade fuse ATO. Silver-plated. Electrical fuse. In fuse box. Mini. Engine compartment, 10 amp. Front, 10 amp.

View Details

110

Fuse

000000-007648-64

Mercedes-Benz

Description: C-5A-S
Model 1: ATO
Model 2: beige
Amps: 5A. Blade fuse ATO. Silver-plated. Electrical fuse. In fuse box. Mini. , rear, 5 amp. Cabin, 5 amp. Coupe, 5 amp. Suv, 5 amp.

MSRP $2.90

$2.21

MSRP $2.90

$2.21

110

Fuse Link

000000-007652-64

Mercedes-Benz

Description: C-20A-S
Model 1: ATO
Model 2: yellow
Amps: 20A. Blade fuse ATO. Silver-plated. Electrical fuse. In fuse box. F241. Mini.

MSRP $4.00

$3.12

MSRP $4.00

$3.12

115

Relay

000-982-42-11

Mercedes-Benz

Description: PLUG POSITION:
Model 2: Halbleiter / Solid State Relay
Volt: 12V
Amps: 35A. Mini slot I
Model 2: Halbleiter / Solid State Relay
Volt: 12V
Amps: 35A. Slot Q
Model 2: Halbleiter / Solid State Relay
Volt: 12V
Amps: 35A.

MSRP $117.00

$88.90

MSRP $117.00

$88.90

115

Relay

000-982-81-27

Mercedes-Benz

Description: Rear, pos. C,f. Front. HEATED REAR WINDOW PANE RELAYModel 2: Schliesser / closing contactVolt: 12VAmps: 50A. PLUG POSITION: NModel 2: Schliesser / closing contactVolt: 12VAmps: 50A. RELAY SLOT 0, SECONDARY AIR PUMPModel 2: Schliesser / closing contactVolt: ...

View Details

115

Relay

000-982-70-27

Mercedes-Benz

Description: SLOT VModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. PLUG POSITION C 40AModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. Mini slot C, F, G, H 40 AModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. Slot LModel 2: Schliesser / closing ...

View Details

115

Relay

003-542-08-19

Mercedes-Benz

Description: SLOT VModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. SLOT MModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. PLUG POSITION: HModel 2: Schliesser / closing contactVolt: 12VAmps: 40A. PLUG POSITION: VModel 2: Schliesser / closing contactVolt ...

MSRP $11.00

$8.54

MSRP $11.00

$8.54

120

Retaining Plate

205-546-31-00

Mercedes-Benz

Description: Relay.

MSRP $21.00

$16.25

MSRP $21.00

$16.25

150

Equipment Compartment

213-540-00-24

Mercedes-Benz

Description: Relay unit.

MSRP $57.00

$43.86

MSRP $57.00

$43.86

150

Equipment Compartment

213-540-01-24-64

Mercedes-Benz

Description: Relay unit.

View Details

160

Plastic Nut Open

000-990-52-62

Mercedes-Benz

Description: Mounting, equipment box. Mounting, control unit box. Equipment compartment mount. To holder.

MSRP $2.40

$1.82

MSRP $2.40

$1.82

170

Cover, Equipment Cmprt

205-540-24-28-65

Mercedes-Benz

Description: Apparatus case. Equipment compartment 806/807/808.

View Details

170

Cover, Equipment Cmprt

205-540-23-28-65

Mercedes-Benz

Description: Apparatus case. Equipment compartment.

MSRP $22.00

$16.90

MSRP $22.00

$16.90

200

Fuse Box

213-540-41-39

Mercedes-Benz

Description: Engine compartment.

View Details

200

Fuse Box

213-540-37-39

Mercedes-Benz

Description: Engine compartment.

MSRP $187.00

$138.88

MSRP $187.00

$138.88

220

Self-Tap Pan Head Screw

001-990-02-11

Mercedes-Benz

Description: M10x25. Fuse box mount. Cross member to tunnel. Strut to suspension strut tower.

MSRP $5.75

$4.42

MSRP $5.75

$4.42

230

Plastic Nut

000-990-35-62

Mercedes-Benz

View Details

320

Control Unit ¹

222-900-82-21

Mercedes-Benz

Description: Rear seat heaters. Right seat. Rear seat, left. Armrest heating. Rear seat heating. Left driver's seat. Seat heater for rear seat bench. Seat heating, front. Left seat heating.

MSRP $170.00

$126.17

MSRP $170.00

$126.17

350
