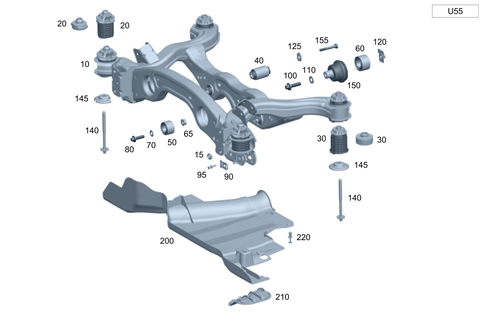

Rear Axle Carrier for 2019 Mercedes-Benz GLA45 AMG

10

Rear Axle Carrier

177-350-35-02

Mercedes-Benz

Description: Rear axle carrier.

View Details

10

Rear Axle Carrier

177-350-92-01

Mercedes-Benz

Description: Rear axle carrier.

View Details

10

Suspension Sub-Frame

247-350-39-04

Mercedes-Benz

Description: Rear axle carrier.

MSRP $900.00

$648.00

MSRP $900.00

$648.00

15

Rivet Nut

000000-007761

Mercedes-Benz

Description: Hinge, upper, front door, left
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. Left longitudinal member
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. To crossmember
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm.

MSRP $1.70

$1.30

MSRP $1.70

$1.30

20

Bearing Sleeve

247-352-60-00

Mercedes-Benz

Description: Front AMG.

View Details

30

Bearing Sleeve

247-352-63-00

Mercedes-Benz

Description: Rear amg.

View Details

40

Spring Link Bushing

177-352-25-00

Mercedes-Benz

Description: Spring link to rear axle carrier, left and right. Spring control arm to rear axle carrier, left and right.

View Details

50

Rubber Bushing

204-351-04-42

Mercedes-Benz

Description: Axle housing to rear axle carrier, rear. Axle housing to rear subframe,rear. Rear axle differential to carrier, front. Axle housing on rear axle carrier, front. Differential to cross stabilizer rear. Axle housing at rear axle carrier, front.

MSRP $27.00

$20.80

MSRP $27.00

$20.80

60

Rear Axle Diff Mount

205-351-39-00

Mercedes-Benz

Description: Axle housing to rear axle carrier, rear left and right. Rear axle differential to carrier, rear.

MSRP $32.00

$24.70

MSRP $32.00

$24.70

65

Hexagon Nut With Flange

005-990-50-50

Mercedes-Benz

Description: Rear axle differential to carrier, front. M14x1,5. Axle housing on rear axle carrier, front. Axle housing at rear axle carrier, front. Torque strut at steering knuckle, left. Suspension strut to left and right steering knuckle. Transverse control arm to left steering knuckle. Lower control arm to steering knuckle, left. Rear axle differential to cross member. Tie rod to wheel bearing left.

MSRP $4.40

$3.38

MSRP $4.40

$3.38

70

Front Support Washer

230-990-00-40

Mercedes-Benz

Description: Crossmember mountDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Support to left and right bodyDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Bearing bracket to left and right rear ax ...

MSRP $3.00

$2.34

MSRP $3.00

$2.34

80

Hexalobular Screw

000000-008040

Mercedes-Benz

Description: Rear axle differential to carrier, front. M14X1,5X67
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Axle housing on rear axle carrier, front. Axle housing at rear axle carrier, front. Rear axle differential to cross member.

MSRP $10.00

$7.67

MSRP $10.00

$7.67

90

Eccentric End Stop

247-352-69-00

Mercedes-Benz

Description: Left front. Tie rod to rear axle carrier, left VORN.

MSRP $4.50

$3.51

MSRP $4.50

$3.51

90

Eccentric End Stop

247-352-73-00

Mercedes-Benz

Description: Tie rod to right rear axle carrier HINTEN. Tie rod to rear axle carrier, left HINTEN.

MSRP $3.70

$2.86

MSRP $3.70

$2.86

95

Expansion Rivet

000-991-59-40

Mercedes-Benz

MSRP $3.70

$2.86

MSRP $3.70

$2.86

120

Holder

246-353-00-00-64

Mercedes-Benz

Description: Code:. 0. Index figure:. 0.

MSRP $8.50

$6.50

MSRP $8.50

$6.50

120

Holder

246-353-05-00

Mercedes-Benz

Description: Code:. 5. Index figure:. 5.

MSRP $9.00

$7.02

MSRP $9.00

$7.02

120

Holder

246-353-02-00-64

Mercedes-Benz

Description: Code:. 2. Index figure:. 2.

View Details

120

Holder

246-353-03-00

Mercedes-Benz

Description: Code:. 3. Index figure:. 3.

MSRP $11.00

$8.58

MSRP $11.00

$8.58

125

Adjusting Plate

205-357-44-00

Mercedes-Benz

Description: Cross bridge, rear left and right to rear axle carrier. 0,5 MM. Left, with 1 notch 0,5 MM. 0,5 MM.

View Details

125

Adjusting Plate

205-357-45-00

Mercedes-Benz

Description: Cross bridge, rear left and right to rear axle carrier. 1,5 MM. Left, with 2 notches 1,5 MM. 1,5 MM.

View Details

125

Adjusting Plate

205-357-46-00

Mercedes-Benz

Description: Cross bridge, rear left and right to rear axle carrier. 2,5 MM. Left, with 3 notches 2,5 MM. 2,5 MM.

View Details

140

Screw W Washer Assembly

000-990-41-29

Mercedes-Benz

Description: Rear axle carrier to left frame floor assembly.

MSRP $27.00

$20.80

MSRP $27.00

$20.80

140

Screw W Washer Assembly

000-990-79-06

Mercedes-Benz

Description: Rear axle carrier to left frame floor assembly. Rear subframe to frame floor unit, front.

MSRP $37.00

$28.60

MSRP $37.00

$28.60

145

Stop Plate

247-352-58-00

Mercedes-Benz

Description: Left front.

MSRP $4.00

$3.12

MSRP $4.00

$3.12

145

Stop Plate

247-352-57-00

Mercedes-Benz

Description: Rear axle carrier to rear left frame floor assembly. Rear axle carrier to front frame floor assembly. Front left. Rear left and right.

MSRP $5.00

$3.90

MSRP $5.00

$3.90

150

Vibration Absorber

246-350-54-01

Mercedes-Benz

Description: Rear axle drive. To axle carrier. Rear axle carrier.

MSRP $110.00

$83.82

MSRP $110.00

$83.82

155

Hexagon Head Bolt

910105-014022-64

Mercedes-Benz

MSRP $12.50

$9.75

MSRP $12.50

$9.75

200

Trim, Rear Axle Carrier

247-352-33-00

Mercedes-Benz

Description: Rear axle carrier. Rear axle support.

MSRP $35.00

$27.30

MSRP $35.00

$27.30

200

Trim, Rear Axle Carrier

247-352-26-00

Mercedes-Benz

Description: Rear axle carrier. Rear axle support.

View Details

210

Cap For Trim

247-352-39-00

Mercedes-Benz

Description: Rear axle carrier.

MSRP $4.50

$3.51

MSRP $4.50

$3.51

220

Expansion Rivet

000-991-94-40

Mercedes-Benz

Description: Trim mount
Diameter: 6,9mm. With chrome. Left side window to fender
Diameter: 6,9mm. Left front cover mount
Diameter: 6,9mm. Panelling to rear axle carrier
diameter: 6,9mm. Cover to left wheel well
Diameter: 6,9mm. Black. Primed. Left roller sunblind mount
Diameter: 6,9mm. Cover panel mount, left
Diameter: 6,9mm.

MSRP $2.40

$1.82

MSRP $2.40

$1.82

310

Elastomer Bearing

247-353-05-00

Mercedes-Benz

Description: Rear axle,left.

View Details

320

Hexalobular Screw

000000-002348

Mercedes-Benz

Description: Left bearing bracket. M12X120
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to left rear axle carrier.

View Details

330

826965 - Rear Axle: Nut for Mercedes-Benz Image

Nut

000000-008269-65

Mercedes-Benz

MSRP $3.20

$2.47

MSRP $3.20

$2.47

340

Wheel Bearing

247-356-02-00

Mercedes-Benz

Description: Rear left.

View Details

350

Hexalobular Screw

000000-007032

Mercedes-Benz

Description: M12X1,5X30
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Wheel bearing to wheel carrier left.

View Details

370

Expansion Rivet

001-991-05-40-64

Mercedes-Benz

Description: Left trim to spring link
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.

View Details
