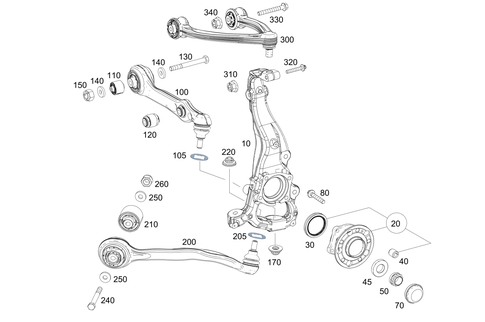

Steering Knuckle and Control Arm for 2017 Mercedes-Benz Maybach S550
No.
Part # / Description / Price
Price
10
MSRP $610.00
$439.20
10
MSRP $695.00
$499.20
40
Clamping Sleeve
Mercedes-Benz
Mercedes-Benz Description: Wheel hub, left. Centering brake disc. In left wheel flange. Brake disc to wheel hub.
50
Nut Mercedes-Benz
Mercedes-Benz Description: Front wheel hub to steering knuckle. Drive shaft to front wheel hub, left. Rear axle shaft to wheel flange, left. Rear axle to hub, left.
MSRP $36.00
$27.95
MSRP $36.00
$27.95
70
Locking Cap Mercedes-Benz
Mercedes-Benz Description: Front wheel hub, outer. Wheel hub, left and right. To left steering knuckle, front axle.
MSRP $5.75
$4.42
MSRP $5.75
$4.42
80
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Steering gear to integral carrierDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel bearing to left steering knuckle, upper M12X1.5X70Diameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: ...
MSRP $10.50
$7.93
MSRP $10.50
$7.93
100
MSRP $384.00
$285.20
105
MSRP $4.00
$3.12
110
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
NOT FOR AMG VEHICLES
NOT FOR AMG VEHICLES
Description: Left.
MSRP $115.00
$87.63
MSRP $115.00
$87.63
110
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
NOT FOR AMG VEHICLES
NOT FOR AMG VEHICLES
Description: Left.
MSRP $119.00
$90.17
MSRP $119.00
$90.17
110
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Notes: NOT FOR AMG VEHICLES
ONLY REPLACEABLE BY PAIRS
ONLY REPLACEABLE BY PAIRS
Description: Left, adjustable bearing.
MSRP $164.00
$124.46
MSRP $164.00
$124.46
110
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Notes: NOT FOR AMG VEHICLES
ONLY REPLACEABLE BY PAIRS
ONLY REPLACEABLE BY PAIRS
Description: Left, adjustable bearing. Right, adjustable bearing.
MSRP $112.00
$85.09
MSRP $112.00
$85.09
120
Supporting Joint Mercedes-Benz
Mercedes-Benz Description: Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
MSRP $72.00
$55.47
MSRP $72.00
$55.47
130
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
130
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left. M14X1,5X130
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right. Trans. Con. Arm left. Bottom on frame.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right. Trans. Con. Arm left. Bottom on frame.
MSRP $33.50
$26.00
MSRP $33.50
$26.00
140
Shim Mercedes-Benz
Mercedes-Benz Description: Spring link to frame-type int. Supp. Left spring link to integral carrier.
150
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
MSRP $7.00
$5.33
MSRP $7.00
$5.33
150
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left. M16
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 24mm. Suspension strut to spring link.
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 24mm. Suspension strut to spring link.
150
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: EXTENSION TO REAR AXLE CARRIERDiameter: 16mmStrength / hardness class: 10Thread code letter: MThread pitch: 1,5mmWidth across flats: 24mm. Spring link to integral carrier, leftDiameter: 16mmStrength / hardness class: 10Thread code letter: MThread pitch: 1, ...
MSRP $6.50
$5.07
MSRP $6.50
$5.07
170
Nut Mercedes-Benz
Mercedes-Benz Description: Shock absorber to spring control arm. M16
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 34,5mm
Width across flats: 24mm. Spring link to steering knuckle, left. Shock absorber mount, lower left. Transverse control arm to frame. Thrust arm to left steering knuckle. Left spring link to integral carrier. Spring link to left wheel carrier. Suspension strut to left and right spring link.
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 34,5mm
Width across flats: 24mm. Spring link to steering knuckle, left. Shock absorber mount, lower left. Transverse control arm to frame. Thrust arm to left steering knuckle. Left spring link to integral carrier. Spring link to left wheel carrier. Suspension strut to left and right spring link.
170
Nut With Clamping Piece Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle, left. M16. Transverse control arm at left wheel carrier.
MSRP $9.75
$7.48
MSRP $9.75
$7.48
200
MSRP $360.00
$267.84
200
MSRP $322.00
$239.32
210
Tension Strut Bushing Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
Description: Left.
MSRP $284.00
$210.80
MSRP $284.00
$210.80
210
MSRP $185.00
$137.64
300
MSRP $492.00
$365.80
300
MSRP $525.00
$376.80
330
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Upper left transverse control arm to body. M12X1,5X95
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Axle housing on rear axle carrier, front. Camber struts to wheel carrier. Transmission to subframe m12x1,5x95. Axle housing to rear subframe. Axle housing to rear axle carrier, rear. Torsion bar to rear axle carrier. Vibration absorber.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Axle housing on rear axle carrier, front. Camber struts to wheel carrier. Transmission to subframe m12x1,5x95. Axle housing to rear subframe. Axle housing to rear axle carrier, rear. Torsion bar to rear axle carrier. Vibration absorber.
MSRP $14.00
$10.92
MSRP $14.00
$10.92
