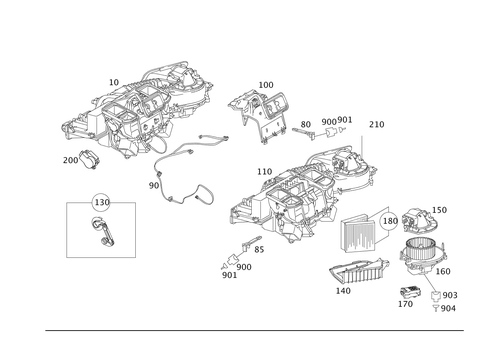

Heater and Evaporator Housing with Blower and Wiring Harness for 2010 Mercedes-Benz SLK300
No.
Part # / Description / Price
Price
30
Sealing Ring
Mercedes-Benz
Mercedes-Benz Description: Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
40
A/C Line O-Ring Mercedes-Benz
Mercedes-Benz Description: AT CONDENSER. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. PRESSURE LINE TO EXPANSION VALVE. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. Refrigerant li ...
50
MSRP $284.00
$210.80
80
MSRP $27.00
$20.80
85
Temperature Sensor Mercedes-Benz
Mercedes-Benz Description: Evaporator. Air conditioner case. Cold air intake.
MSRP $21.00
$16.25
MSRP $21.00
$16.25
160
MSRP $454.00
$337.28
180
MSRP $137.00
$104.14
200
Electric Motor Mercedes-Benz
Mercedes-Benz Description: Air flap control. Servomotor. Heater/air conditioning TO A463 830 06 62,A209 830 01 62. Air duct. In central console.
MSRP $154.00
$116.84
MSRP $154.00
$116.84
250
Parts Kit, Seal Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Left & right defrosters to instrument panel,top.
260
Intermediate Layer Mercedes-Benz
Mercedes-Benz Description: For firewall bolt. Housing,top. Blower housing on firewall. Heater/air conditioning TO A463 830 06 62,209 830 01 62.
280
Seal Mercedes-Benz
Mercedes-Benz Description: Air conditioner case. Blower housing on firewall. Fresh-air intake.
MSRP $18.50
$14.30
MSRP $18.50
$14.30
310
Cable Tie Mercedes-Benz
Mercedes-Benz Description: TO HOSE. 4,8X300 MM
Diameter: -
Inside diameter: 1,6mm
Outside diameter: 35mm
Material thickness: 1,2mm.
Diameter: -
Inside diameter: 1,6mm
Outside diameter: 35mm
Material thickness: 1,2mm.
904
Electric Line Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
SEE WIS FOR REPAIR INSTRUCTIONS.
=================================================================================================
SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT JOINT:
A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
===================================================================================================
Description: With single-wire seal. 4.0 MM2 SLK2.8Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgModel 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62. SOUND AMPLIFIER N40/3,N93/1. 4.0 MM2 SLK2.8Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PIN ...
