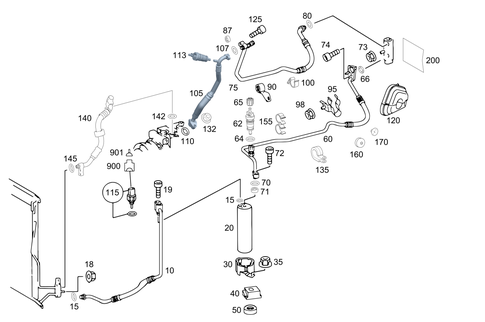

Refrigerant Line Arrangement for 1999 Mercedes-Benz SL500
No.
Part # / Description / Price
Price
10
MSRP $109.00
$82.55
15
O-Ring
Mercedes-Benz
Mercedes-Benz Description: Sprinter van. Type 1. Refrigerant line to mounting plate. 9.5X2.6
Diameter: 9,5mm
Inside diameter: 9,5mm
Outside diameter: 14,7mm
Material thickness: 2,6mm. Engine Mounted A/C. 9.5 x 2.5mm. All Required. 9.5 x 2.6mm.
Diameter: 9,5mm
Inside diameter: 9,5mm
Outside diameter: 14,7mm
Material thickness: 2,6mm. Engine Mounted A/C. 9.5 x 2.5mm. All Required. 9.5 x 2.6mm.
MSRP $3.20
$2.44
MSRP $3.20
$2.44
19
MSRP $3.00
$2.34
30
MSRP $12.00
$9.10
60
Piping Mercedes-Benz
Mercedes-Benz Description: Refrigerant line from reservoir to expansion valve.
MSRP $206.00
$152.52
MSRP $206.00
$152.52
73
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$2.60
MSRP $3.40
$2.60
74
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Holder to left body. M6X20
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Expansion valve to separation point. Bracket to rear axle carrier lh. Bracket to body at left. Fuse box to holder. Link rod to spring link, left. Wiring harness mount. Cable junction to separation point.
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Expansion valve to separation point. Bracket to rear axle carrier lh. Bracket to body at left. Fuse box to holder. Link rod to spring link, left. Wiring harness mount. Cable junction to separation point.
MSRP $2.40
$1.82
MSRP $2.40
$1.82
75
MSRP $478.00
$354.64
75
80
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
90
Clamping Piece Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From expansion valve separation point.
105
MSRP $200.00
$148.80
110
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Piping to refrigerant compressor. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23,8mmOutside diameter: 28,6mmMaterial thickness: 2,4mm. Refrigerant line. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23, ...
MSRP $3.60
$2.74
MSRP $3.60
$2.74
115
Temperature Sensor Mercedes-Benz
Mercedes-Benz Description: To condenser. M 12. At condenser,bottom. Refrigerant.
MSRP $37.00
$28.60
MSRP $37.00
$28.60
115
Temperature Sensor Mercedes-Benz
Mercedes-Benz Description: To condenser. On liquid reservoir. Refrigerant pressure and temperature sensor. Coolant temperatuter sensor.
MSRP $80.00
$61.92
MSRP $80.00
$61.92
140
MSRP $200.00
$148.80
142
A/C Line O-Ring Mercedes-Benz
Mercedes-Benz Description: AT CONDENSER. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. PRESSURE LINE TO EXPANSION VALVE. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. Refrigerant li ...
900
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: 4-PIN MQS
Model 1: MQS
Slots: 4
Release tool: W220 589 01 99 60.
Model 1: MQS
Slots: 4
Release tool: W220 589 01 99 60.
MSRP $5.75
$4.42
MSRP $5.75
$4.42
901
Blanking Plug Mercedes-Benz
Mercedes-Benz Description: 7,8X3,9. 3.9mm SLK2.8Leitungsquerschnitt Min/Max: 3,9mm2ELA: -Model 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62. AUXILIARY HEATER. 3.9mm SLK2.8Leitungsquerschnitt Min/Max: 3,9mm2ELA: -Model 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62. White. 3. ...
MSRP $1.70
$1.30
MSRP $1.70
$1.30
901
Electric Line Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
SEE WIS FOR REPAIR INSTRUCTIONS.
=================================================================================================
SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT JOINT:
A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
===================================================================================================
MSRP $8.00
$6.11
MSRP $8.00
$6.11
