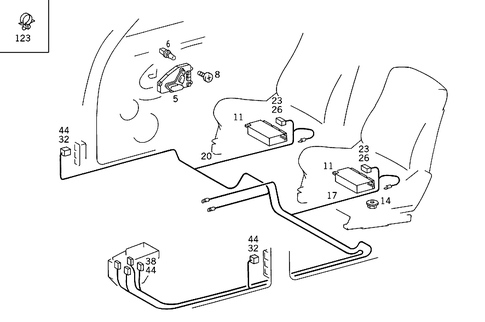

Electric Front Seat Adjustment for 1993 Mercedes-Benz 500SEL
No.
Part # / Description / Price
Price
5
Switch
Mercedes-Benz
Mercedes-Benz Description: Electric seat adjuster. With programming,left.
MSRP $270.00
$200.88
MSRP $270.00
$200.88
6
MSRP $42.00
$27.30
8
MSRP $22.00
$16.90
11
Control Unit Mercedes-Benz
Mercedes-Benz Description: Co-driver's seat adjustment operated from the rear. Elec. Rear seat adjuster,with memory. Codriver's seat operated from rear door.
14
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$2.60
MSRP $3.40
$2.60
17
17
17
20
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Electric seat adjuster. With programming,right.
23
Plug Mercedes-Benz
Mercedes-Benz Description: Control unit of comfort control. 12-pin. Seat adjustment control unit, with memory. 12-pin.
26
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.21
MSRP $2.90
$2.21
26
Contact Socket Mercedes-Benz
Mercedes-Benz Description: D 4,0mm. 4.0 mm. To 014 545 91 28. To 015 545 56 28,015 545 57 28. 4mm (to 015 545 29 28). 4 mm2.
32
44
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
MSRP $3.50
$2.73
MSRP $3.50
$2.73
44
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
MSRP $4.90
$3.77
MSRP $4.90
$3.77
44
Spring Retaining Pin Mercedes-Benz
Mercedes-Benz Description: 1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
MSRP $3.90
$2.99
MSRP $3.90
$2.99
44
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
MSRP $3.90
$2.99
MSRP $3.90
$2.99
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Right seat height adjustment,rear. With programming to 140 820 44 42. Potentiometer to 140 820 44 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Seat cushion depth adjustment with programming,right to 140 820 42 42. Potentiometer to 140 820 42 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Left seat height adjustment,rear. With programming to 140 820 43 42. Potentiometer to 140 820 43 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Fore and aft adjustment,right seat. With programming to 140 820 38 42. Potentiometer to 140 820 38 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Fore and aft adjustment,left seat. With programming to 140 820 37 42. Potentiometer to 140 820 37 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Description: Seat cushion depth adjustment with programming,left to 140 820 41 42. Potentiometer to 140 820 41 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Right seat height adjustment,front. With programming to 140 820 40 42. Potentiometer to 140 820 40 42.
80
Resistor Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Left seat height adjustment,front. With programming to 140 820 39 42. Potentiometer to 140 820 39 42.
83
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Tempomat switch. 6-pin rk2.5. Change-over valve. 6-pin rk2.5. Belt feeder electronics,six-pole. 6-pin rk2.5. Push-button switch,cruise control. 6-pin rk2.5. Overheat warning indicator plugconnection. 6-pin rk2.5. Tempomat (cruise control). 6-pin rk2.5.
89
104
Screw Mercedes-Benz
Mercedes-Benz Description: Amplifier to bracket. Electric motor to backrest frame to 140 820 09 14.
107
Blind Rivet Mercedes-Benz
Mercedes-Benz Description: Electric motor to backrest frame to 140 821 09 14.
MSRP $1.50
$1.17
MSRP $1.50
$1.17
