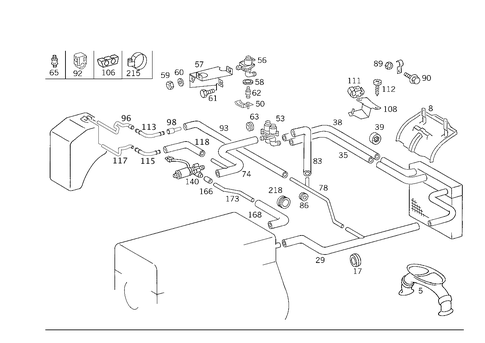

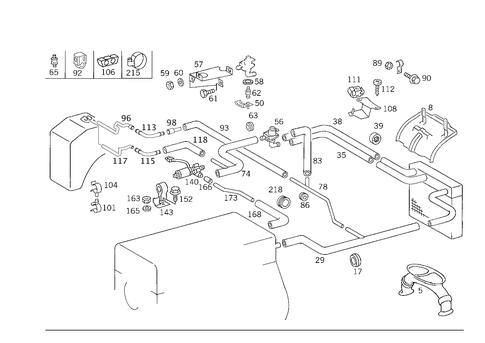

Heating Water Connection for 1993 Mercedes-Benz 500E
No.
Part # / Description / Price
Price
8
Water Channel
Mercedes-Benz
Mercedes-Benz Notes: USED WITHOUT DUST FILTER
Description: At wheelhouse reinforcement, for water drain hose. Water drain of central part below windshield.
29
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From engine to feed line. Used without heated wiper system.
29
MSRP $52.00
$39.99
29
MSRP $94.00
$71.12
38
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH TEMPMATIK
Description: From right heat exchanger to water valve.
38
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH TEMPMATIK
Description: From right heat exchanger to water valve.
38
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: From right heat exchanger to water valve.
38
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
Description: From right heat exchanger to water valve.
53
Valve Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH TEMPMATIK
USED WITHOUT ADDITIONAL HEATER
USED WITHOUT ADDITIONAL HEATER
Description: (double water valve),electromagnetic.
MSRP $280.00
$173.60
MSRP $280.00
$173.60
53
Valve Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH TEMPMATIK
ONLY USED WITH AUXILIARY HEATER
ONLY USED WITH AUXILIARY HEATER
Description: Learn. Used without automatic air conditioner. (double water valve),electromagnetic.
56
Valve Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
USED WITHOUT ADDITIONAL HEATER
USED WITHOUT ADDITIONAL HEATER
Description: (water valve),electromagnetic.
56
Valve Mercedes-Benz
Mercedes-Benz Notes: ONLY USED WITH AUTOMATIC AIR CONDITIONER
ONLY USED WITH AUXILIARY HEATER
ONLY USED WITH AUXILIARY HEATER
Description: Only used with automatic air conditioner. (water valve),electromagnetic.
MSRP $408.00
$252.96
MSRP $408.00
$252.96
58
MSRP $2.20
$1.69
60
MSRP $0.90
$0.65
61
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Ground cable to damper strut dome. Bracket.
MSRP $2.20
$1.69
MSRP $2.20
$1.69
62
Buffer Mercedes-Benz
Mercedes-Benz Description: Valve unit fastening. Water valve to bracket. Between water valve and bracket.
MSRP $3.50
$2.73
MSRP $3.50
$2.73
65
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Valve unit fastening. Between bracket and double water valve. Water valve to bracket. For double water valve,on fire wall.
MSRP $3.00
$2.34
MSRP $3.00
$2.34
68
Hose Mercedes-Benz
Mercedes-Benz Description: From double water valve to pipe line. From double water valve to engine. Used without heated wiper system.
74
Hose Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From double water valve to recirculating pump.
76
Hose Mercedes-Benz
Mercedes-Benz Description: From double water valve to recircultg. Pump. Used without heated wiper system.
76
Hose Mercedes-Benz
Mercedes-Benz Description: From double water valve to recircultg. Pump. Used without heated wiper system.
80
92
Clamp Mercedes-Benz
Mercedes-Benz Description: Feed line to fire wall. Fuel lines on floor under fuel tank. Breather line under rear floor. (vent line) from activated charcoal filter to boot. Brake and fuel lines to vehicle floor.
93
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Feed. Pane washer water heating. Heated windshield washer.
MSRP $36.00
$27.95
MSRP $36.00
$27.95
98
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Feed. Heated windshield washer 54 mm.
MSRP $6.50
$4.94
MSRP $6.50
$4.94
101
Jaw Clamp Mercedes-Benz
Mercedes-Benz Description: At motor. 14-16 mm. Left rear brake cable. 14-16 mm. Line to line. 14-16 MM. Oil line connection. 14-16 mm.
MSRP $8.00
$6.11
MSRP $8.00
$6.11
104
Clamp Mercedes-Benz
Mercedes-Benz Description: Water tank feed line to return line. 15 mm. Feed hose to return hose. 15 mm. Range high-pressure reservoir & charge plunger unit hydraulics unit. 15 mm. Spacer. 15 mm. Sensor cable 15mm. 15 mm. Hose bracket. 15 mm. Hose attachment. 15 mm. Spacing of fuel feed/return lines. 15 mm. Attachment of vent line. 15 mm.
MSRP $2.50
$1.95
MSRP $2.50
$1.95
106
Rubber Guide Mercedes-Benz
Mercedes-Benz Description: Fuel lines to cowl. Lines to fire wall,top left. Fuel lines behind steering. 18 mm. Spacing of fuel lines. Return. To heated pane washer system.
111
Holder Mercedes-Benz
Mercedes-Benz Description: Activated charcoal filter. Windshield washer pipe line to right side member. Aeration/ventilation. Regeneration line. Line to cross member. Fuel line to partition panel. On damper strut dome bracket,right. Pipe line to right wheel arch.
MSRP $6.50
$4.94
MSRP $6.50
$4.94
118
Hose Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Return. Pane washer water heating. To heated pane washer system 54 mm.
MSRP $9.25
$7.15
MSRP $9.25
$7.15
152
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Bracket to heater case. N 14128 6,3X16-R
Diameter: 6,3mm
Thread code letter: R. Attachment cover left. Bracket with recirculating pump to side member,front. Control unit to fire wall abs. Screening to partition panel 6.3x16.
Diameter: 6,3mm
Thread code letter: R. Attachment cover left. Bracket with recirculating pump to side member,front. Control unit to fire wall abs. Screening to partition panel 6.3x16.
MSRP $1.90
$1.43
MSRP $1.90
$1.43
168
MSRP $37.00
$28.60
215
Clamp Mercedes-Benz
Mercedes-Benz Description: Cooling water hose to expansion tank. 25-40mm. Filling hose to expansion tank. 25-40mm. From expansion tank to radiator. 25-40mm.
215
Hose Clamp W Worm Drive Mercedes-Benz
Mercedes-Benz Description: Cooling water hose to radiator. 23-30 mm. Fuel hose. 23-30 mm. From oil tank to pump. 23-30 mm. Hose to water valve 20-30 mm. 23-30 mm. Filling hose to radiator. 23-30 mm. From engine to heat exchanger l 23-30. 23-30 mm.
MSRP $7.00
$5.46
MSRP $7.00
$5.46
215
Clamp Mercedes-Benz
Mercedes-Benz Description: 20 - 32 MM. 23-30 MMDiameter: 20-32mmMaterial thickness: 1mmWidth across flats: SW8. Between piping and circulation pump. 23-30 MMDiameter: 20-32mmMaterial thickness: 1mmWidth across flats: SW8. FROM ENGINE TO CHECK VALVE. 23-30 MMDiameter: 20-32mmMaterial ...
MSRP $4.50
$3.51
MSRP $4.50
$3.51
215
MSRP $10.50
$8.19
No.
Part # / Description / Price
Price
90
Screw Mercedes-Benz
Mercedes-Benz Description: Door check to front door. Pipe line to unit partition panel. Locking mechanism. Safety hook to engine hood. Line to steering. Additional blower to front central stiffening. Bracket to unit partition panel. Control unit to bracket ke.
