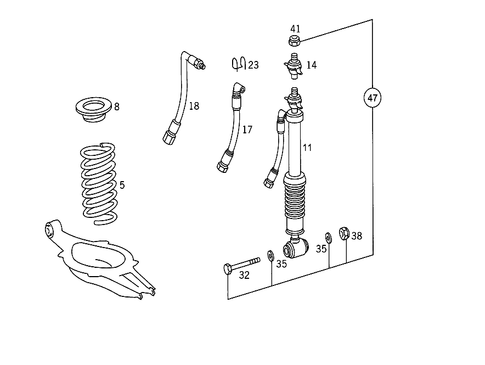

Rear Springs & Suspension Used with Self-Levelling Device & a D S for 1993 Mercedes-Benz 300SD
No.
Part # / Description / Price
Price
5
Rear Spring
Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 20
140.032 23
140.033 23 550 HITCHING MECHANISM 8
140.042 31 582 AIR CONDDITIONER IN THE REAR 8
140.043 32 307 COOL BOX 6
140.050 31 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 33 412,414 SLIDING ROOF 3
140.056 52 274,325 AUTOMOBILE TELEPHON 2
140.057 55 211,471 ASD/ASR 2
140.134 35 480 SELF-LEVELLING DEVICE 2
819 CD CHANGER 2
810 SOUND SYSTEM 1
241,242 ELECTICALLY ADJUSTED FRONT SAET 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
772 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 01 04 140 321 06 84 140 321 07 84
33-42 140 324 01 04 140 321 07 84 140 321 08 84
43-52 140 324 01 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 02 04 140 321 06 84 140 321 07 84 .
55-64 140 324 02 04 140 321 07 84 140 321 08 84
65- 140 324 02 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 321 03 04 140 321 06 84 140 321 07 84
33-40 140 321 03 04 140 321 07 84 140 321 08 84 .
41-48 140 321 03 04 140 321 08 84 140 321 09 84
.
49-50 140 321 04 04 140 321 06 84 140 321 07 84
51-58 140 321 04 04 140 321 07 84 140 321 08 84
59-66 140 321 04 04 140 321 08 84 140 321 09 84
67- 140 324 04 04 140 321 09 84
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.: A 120932
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 28
140.032 33 PARTITION PANEL 11
140.033 33 550 HITCHING MECHANISM 8
140.042 34 582 AIR CONDDITIONER IN THE REAR 8
140.043 43 307 COOL BOX 6
140.050 38 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 38 412,414 SLIDING ROOF 3
140.056 50 274,325 AUTOMOBILE TELEPHON 2
140.057 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2
140.134 35 480 SELF-LEVELLING DEVICE 2
217 ADAPTIVE DAMPINGSYSTEM 2
810 SOUND SYSTEM 1
540 REAR WINDOW ROLLER BLIND 1
420,423,425 AUTOMATIC TRANSMISSION 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-33 140 324 13 04 140 321 06 84 140 321 07 84
34-42 140 324 13 04 140 321 07 84 140 321 08 84
43-52 140 324 13 04 140 321 08 84 140 321 09 84 .
.
53- 140 324 14 04 140 321 06 84 140 321 07 84 .
54-63 140 324 14 04 140 321 07 84 140 321 08 84
64- 140 324 14 04 140 321 08 84 140 321 09 84
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-30 140 324 06 04 140 321 06 84 140 321 07 84 .
31-40 140 324 06 04 140 321 07 84 140 321 08 84
41-50 140 324 06 04 140 321 08 84 140 321 09 84
51- 140 324 06 04 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-29 140 324 15 04 140 321 06 84 140 321 07 84
30-37 140 324 15 04 140 321 07 84 140 321 08 84 .
38-45 140 324 15 04 140 321 08 84 140 321 09 84
.
46-55 140 324 16 04 140 321 06 84 140 321 07 84
56-63 140 324 16 04 140 321 07 84 140 321 08 84
64- 140 324 16 04 140 321 08 84 140 321 09 84
==============================================================================================================================
As of ident. no.: A 120932 TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 53 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING 34-42 140 324 13 04 140 321 07 84 140 321 08 84 43-52 140 324 13 04 140 321 08 84 140 321 09 84 . . 53- 140 324 14 04 140 321 06 84 140 321 07 84 . 54-63 140 324 14 04 140 321 07 84 140 321 08 84 64- 140 324 14 04 140 321 08 84 140 321 09 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 15 04 140 321 08 84 140 321 09 84 . 46-55 140 324 16 04 140 321 06 84 140 321 07 84 56-63 140 324 16 04 140 321 07 84 140 321 08 84 64- 140 324 16 04 140 321 08 84 140 321 09 84 ==============================================================================================================================
As of ident. no.: A 120932 TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 53 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING 34-42 140 324 13 04 140 321 07 84 140 321 08 84 43-52 140 324 13 04 140 321 08 84 140 321 09 84 . . 53- 140 324 14 04 140 321 06 84 140 321 07 84 . 54-63 140 324 14 04 140 321 07 84 140 321 08 84 64- 140 324 14 04 140 321 08 84 140 321 09 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 15 04 140 321 08 84 140 321 09 84 . 46-55 140 324 16 04 140 321 06 84 140 321 07 84 56-63 140 324 16 04 140 321 07 84 140 321 08 84 64- 140 324 16 04 140 321 08 84 140 321 09 84 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 30
140.032 33 PARTITION PANEL 11
140.033 33 550 HITCHING MECHANISM 8
140.042 34 582 AIR CONDDITIONER IN THE REAR 8
140.043 43 307 COOL BOX 6
140.050 38 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 38 412,414 SLIDING ROOF 3
140.056 38 274,325 AUTOMOBILE TELEPHON 2
140.057 38 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2
140.134 28 480 SELF-LEVELLING DEVICE 2
140.135 28 217 ADAPTIVE DAMPINGSYSTEM 2
810 SOUND SYSTEM 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-33 140 324 17 04 140 325 01 84 140 325 02 84
34-42 140 324 17 04 140 325 02 84 140 325 03 84
43-52 140 324 17 04 140 325 03 84 140 325 04 84 .
.
53-64 140 324 21 04 140 325 01 84 140 325 02 84 .
64-74 140 324 21 04 140 325 02 84 140 325 03 84
75- 140 324 21 04 140 325 03 84 140 325 04 84
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-30 140 324 21 04 140 325 01 84 140 325 02 84 .
31-40 140 324 21 04 140 325 02 84 140 325 03 84
41-50 140 324 21 04 140 325 03 84 140 325 04 84
51- 140 324 21 04 140 325 04 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-29 140 324 18 04 140 325 01 84 140 325 02 84
30-37 140 324 18 04 140 325 02 84 140 325 03 84 .
38-45 140 324 18 04 140 325 03 84 140 325 04 84
.
46-55 140 324 19 04 140 325 01 84 140 325 02 84
56-63 140 324 19 04 140 325 02 84 140 325 03 84
64- 140 324 19 04 140 325 03 84 140 325 04 84
==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 48 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -42 140 324 17 04 140 325 02 84 140 325 03 84 43-52 140 324 17 04 140 325 03 84 140 325 04 84 . . 53-64 140 324 21 04 140 325 02 84 140 325 03 84 . 65- 140 324 21 04 140 325 02 84 140 325 03 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 18 04 140 325 03 84 140 325 04 84 . 46-55 140 324 19 04 140 325 01 84 140 325 02 84 56-63 140 324 19 04 140 325 02 84 140 325 03 84 64- 140 324 19 04 140 325 03 84 140 325 04 84 ==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 48 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -42 140 324 17 04 140 325 02 84 140 325 03 84 43-52 140 324 17 04 140 325 03 84 140 325 04 84 . . 53-64 140 324 21 04 140 325 02 84 140 325 03 84 . 65- 140 324 21 04 140 325 02 84 140 325 03 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 18 04 140 325 03 84 140 325 04 84 . 46-55 140 324 19 04 140 325 01 84 140 325 02 84 56-63 140 324 19 04 140 325 02 84 140 325 03 84 64- 140 324 19 04 140 325 03 84 140 325 04 84 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.: A 120932
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 28
140.032 33 PARTITION PANEL 11
140.033 33 550 HITCHING MECHANISM 8
140.042 34 582 AIR CONDDITIONER IN THE REAR 8
140.043 43 307 COOL BOX 6
140.050 38 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 38 412,414 SLIDING ROOF 3
140.056 50 274,325 AUTOMOBILE TELEPHON 2
140.057 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2
140.134 35 480 SELF-LEVELLING DEVICE 2
217 ADAPTIVE DAMPINGSYSTEM 2
810 SOUND SYSTEM 1
540 REAR WINDOW ROLLER BLIND 1
420,423,425 AUTOMATIC TRANSMISSION 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-33 140 324 13 04 140 321 06 84 140 321 07 84
34-42 140 324 13 04 140 321 07 84 140 321 08 84
43-52 140 324 13 04 140 321 08 84 140 321 09 84 .
.
53- 140 324 14 04 140 321 06 84 140 321 07 84 .
54-63 140 324 14 04 140 321 07 84 140 321 08 84
64- 140 324 14 04 140 321 08 84 140 321 09 84
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-30 140 324 06 04 140 321 06 84 140 321 07 84 .
31-40 140 324 06 04 140 321 07 84 140 321 08 84
41-50 140 324 06 04 140 321 08 84 140 321 09 84
51- 140 324 06 04 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-29 140 324 15 04 140 321 06 84 140 321 07 84
30-37 140 324 15 04 140 321 07 84 140 321 08 84 .
38-45 140 324 15 04 140 321 08 84 140 321 09 84
.
46-55 140 324 16 04 140 321 06 84 140 321 07 84
56-63 140 324 16 04 140 321 07 84 140 321 08 84
64- 140 324 16 04 140 321 08 84 140 321 09 84
==============================================================================================================================
As of ident. no.: A 120932 TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 53 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING 34-42 140 324 13 04 140 321 07 84 140 321 08 84 43-52 140 324 13 04 140 321 08 84 140 321 09 84 . . 53- 140 324 14 04 140 321 06 84 140 321 07 84 . 54-63 140 324 14 04 140 321 07 84 140 321 08 84 64- 140 324 14 04 140 321 08 84 140 321 09 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 15 04 140 321 08 84 140 321 09 84 . 46-55 140 324 16 04 140 321 06 84 140 321 07 84 56-63 140 324 16 04 140 321 07 84 140 321 08 84 64- 140 324 16 04 140 321 08 84 140 321 09 84 ==============================================================================================================================
As of ident. no.: A 120932 TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 53 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING 34-42 140 324 13 04 140 321 07 84 140 321 08 84 43-52 140 324 13 04 140 321 08 84 140 321 09 84 . . 53- 140 324 14 04 140 321 06 84 140 321 07 84 . 54-63 140 324 14 04 140 321 07 84 140 321 08 84 64- 140 324 14 04 140 321 08 84 140 321 09 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 15 04 140 321 08 84 140 321 09 84 . 46-55 140 324 16 04 140 321 06 84 140 321 07 84 56-63 140 324 16 04 140 321 07 84 140 321 08 84 64- 140 324 16 04 140 321 08 84 140 321 09 84 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 20
140.032 23
140.033 23 550 HITCHING MECHANISM 8
140.042 31 582 AIR CONDDITIONER IN THE REAR 8
140.043 32 307 COOL BOX 6
140.050 31 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 33 412,414 SLIDING ROOF 3
140.056 52 274,325 AUTOMOBILE TELEPHON 2
140.057 55 211,471 ASD/ASR 2
140.134 35 480 SELF-LEVELLING DEVICE 2
819 CD CHANGER 2
810 SOUND SYSTEM 1
241,242 ELECTICALLY ADJUSTED FRONT SAET 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
772 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 01 04 140 321 06 84 140 321 07 84
33-42 140 324 01 04 140 321 07 84 140 321 08 84
43-52 140 324 01 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 02 04 140 321 06 84 140 321 07 84 .
55-64 140 324 02 04 140 321 07 84 140 321 08 84
65- 140 324 02 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 321 03 04 140 321 06 84 140 321 07 84
33-40 140 321 03 04 140 321 07 84 140 321 08 84 .
41-48 140 321 03 04 140 321 08 84 140 321 09 84
.
49-50 140 321 04 04 140 321 06 84 140 321 07 84
51-58 140 321 04 04 140 321 07 84 140 321 08 84
59-66 140 321 04 04 140 321 08 84 140 321 09 84
67- 140 324 04 04 140 321 09 84
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A 120931
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.032 USA 32 582 AIR CONDDITIONER IN THE REAR 8
140.042 USA 39 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.043 USA 37 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD) 2
140.051 USA 41 480 SELF-LEVELLING DEVICE 2
140.057 USA 73 217 ADAPTIVE DAMPINGSYSTEM (ADS) 2
140.134 USA 43 540 REAR WINDOW ROLLE 1
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 05 04 140 321 06 84 140 321 07 84
33-42 140 324 05 04 140 321 07 84 140 321 08 84
42-52 140 324 05 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 06 04 140 321 06 84 140 321 07 84 .
55-64 140 324 06 04 140 321 07 84 140 321 08 84
65- 140 324 06 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-38 140 324 07 04 140 321 07 84 140 321 08 84 .
39-46 140 324 07 04 140 321 08 84 140 321 09 84
.
47-55 140 324 08 04 140 321 06 84 140 321 07 84
56-64 140 324 08 04 140 321 07 84 140 321 08 84
65- 140 324 08 04 140 321 08 84 140 321 09 84
==============================================================================================================================
Description: As required.
MSRP $184.00
$136.40
MSRP $184.00
$136.40
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.: A 120931
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.032 USA 32 582 AIR CONDDITIONER IN THE REAR 8
140.042 USA 39 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.043 USA 37 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD) 2
140.051 USA 41 480 SELF-LEVELLING DEVICE 2
140.057 USA 73 217 ADAPTIVE DAMPINGSYSTEM (ADS) 2
140.134 USA 43 540 REAR WINDOW ROLLE 1
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 05 04 140 321 06 84 140 321 07 84
33-42 140 324 05 04 140 321 07 84 140 321 08 84
42-52 140 324 05 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 06 04 140 321 06 84 140 321 07 84 .
55-64 140 324 06 04 140 321 07 84 140 321 08 84
65- 140 324 06 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-38 140 324 07 04 140 321 07 84 140 321 08 84 .
39-46 140 324 07 04 140 321 08 84 140 321 09 84
.
47-55 140 324 08 04 140 321 06 84 140 321 07 84
56-64 140 324 08 04 140 321 07 84 140 321 08 84
65- 140 324 08 04 140 321 08 84 140 321 09 84
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 20
140.032 23
140.033 23 550 HITCHING MECHANISM 8
140.042 31 582 AIR CONDDITIONER IN THE REAR 8
140.043 32 307 COOL BOX 6
140.050 31 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 33 412,414 SLIDING ROOF 3
140.056 52 274,325 AUTOMOBILE TELEPHON 2
140.057 55 211,471 ASD/ASR 2
140.134 35 480 SELF-LEVELLING DEVICE 2
819 CD CHANGER 2
810 SOUND SYSTEM 1
241,242 ELECTICALLY ADJUSTED FRONT SAET 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
772 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 01 04 140 321 06 84 140 321 07 84
33-42 140 324 01 04 140 321 07 84 140 321 08 84
43-52 140 324 01 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 02 04 140 321 06 84 140 321 07 84 .
55-64 140 324 02 04 140 321 07 84 140 321 08 84
65- 140 324 02 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 321 03 04 140 321 06 84 140 321 07 84
33-40 140 321 03 04 140 321 07 84 140 321 08 84 .
41-48 140 321 03 04 140 321 08 84 140 321 09 84
.
49-50 140 321 04 04 140 321 06 84 140 321 07 84
51-58 140 321 04 04 140 321 07 84 140 321 08 84
59-66 140 321 04 04 140 321 08 84 140 321 09 84
67- 140 324 04 04 140 321 09 84
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 30
140.032 33 PARTITION PANEL 11
140.033 33 550 HITCHING MECHANISM 8
140.042 34 582 AIR CONDDITIONER IN THE REAR 8
140.043 43 307 COOL BOX 6
140.050 38 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 38 412,414 SLIDING ROOF 3
140.056 38 274,325 AUTOMOBILE TELEPHON 2
140.057 38 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2
140.134 28 480 SELF-LEVELLING DEVICE 2
140.135 28 217 ADAPTIVE DAMPINGSYSTEM 2
810 SOUND SYSTEM 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-33 140 324 17 04 140 325 01 84 140 325 02 84
34-42 140 324 17 04 140 325 02 84 140 325 03 84
43-52 140 324 17 04 140 325 03 84 140 325 04 84 .
.
53-64 140 324 21 04 140 325 01 84 140 325 02 84 .
64-74 140 324 21 04 140 325 02 84 140 325 03 84
75- 140 324 21 04 140 325 03 84 140 325 04 84
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-30 140 324 21 04 140 325 01 84 140 325 02 84 .
31-40 140 324 21 04 140 325 02 84 140 325 03 84
41-50 140 324 21 04 140 325 03 84 140 325 04 84
51- 140 324 21 04 140 325 04 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-29 140 324 18 04 140 325 01 84 140 325 02 84
30-37 140 324 18 04 140 325 02 84 140 325 03 84 .
38-45 140 324 18 04 140 325 03 84 140 325 04 84
.
46-55 140 324 19 04 140 325 01 84 140 325 02 84
56-63 140 324 19 04 140 325 02 84 140 325 03 84
64- 140 324 19 04 140 325 03 84 140 325 04 84
==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 48 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -42 140 324 17 04 140 325 02 84 140 325 03 84 43-52 140 324 17 04 140 325 03 84 140 325 04 84 . . 53-64 140 324 21 04 140 325 02 84 140 325 03 84 . 65- 140 324 21 04 140 325 02 84 140 325 03 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 18 04 140 325 03 84 140 325 04 84 . 46-55 140 324 19 04 140 325 01 84 140 325 02 84 56-63 140 324 19 04 140 325 02 84 140 325 03 84 64- 140 324 19 04 140 325 03 84 140 325 04 84 ==============================================================================================================================
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND OF THE SPECIAL VERSIONS INSTALLED ============================================================================================================================== MODEL POINTS CODE SPECIAL EQUIPMENT POINTS 140.032 AUS 42 307 COOL BOX 6 140.042 AUS 42 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4 140.043 AUS 51 211 AUTOMATIC LOCKING DIFFERENTIAL (ASD)2 140.051 AUS 46 217 ADAPTIVE DAMPING SYSTEM (ADS) 2 140.057 AUS 48 540 REAR WINDOW ROLLER BLIND 1 . ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS ============================================================================================================================== SUM OF POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -42 140 324 17 04 140 325 02 84 140 325 03 84 43-52 140 324 17 04 140 325 03 84 140 325 04 84 . . 53-64 140 324 21 04 140 325 02 84 140 325 03 84 . 65- 140 324 21 04 140 325 02 84 140 325 03 84 ============================================================================================================================== TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480 ============================================================================================================================== SUM OF THE POINTS REAR SPRING BOOT: BOOT: WITH BLUE REAR SPRING W/ RED REAR SPRING -45 140 324 18 04 140 325 03 84 140 325 04 84 . 46-55 140 324 19 04 140 325 01 84 140 325 02 84 56-63 140 324 19 04 140 325 02 84 140 325 03 84 64- 140 324 19 04 140 325 03 84 140 325 04 84 ==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
140.028 20
140.032 23
140.033 23 550 HITCHING MECHANISM 8
140.042 31 582 AIR CONDDITIONER IN THE REAR 8
140.043 32 307 COOL BOX 6
140.050 31 223 REAR SEAT BENCH ADJUSTMENT,ELECTRIC 4
140.051 33 412,414 SLIDING ROOF 3
140.056 52 274,325 AUTOMOBILE TELEPHON 2
140.057 55 211,471 ASD/ASR 2
140.134 35 480 SELF-LEVELLING DEVICE 2
819 CD CHANGER 2
810 SOUND SYSTEM 1
241,242 ELECTICALLY ADJUSTED FRONT SAET 1
540 REAR WINDOW ROLLER BLIND 1
420,425 AUTOMATIC TRANSMISSION 1
772 1
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 324 01 04 140 321 06 84 140 321 07 84
33-42 140 324 01 04 140 321 07 84 140 321 08 84
43-52 140 324 01 04 140 321 08 84 140 321 09 84 .
.
53-54 140 324 02 04 140 321 06 84 140 321 07 84 .
55-64 140 324 02 04 140 321 07 84 140 321 08 84
65- 140 324 02 04 140 321 08 84 140 321 09 84
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT, LEVEL CONTROL CODE 480
==============================================================================================================================
SUM OF THE POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-32 140 321 03 04 140 321 06 84 140 321 07 84
33-40 140 321 03 04 140 321 07 84 140 321 08 84 .
41-48 140 321 03 04 140 321 08 84 140 321 09 84
.
49-50 140 321 04 04 140 321 06 84 140 321 07 84
51-58 140 321 04 04 140 321 07 84 140 321 08 84
59-66 140 321 04 04 140 321 08 84 140 321 09 84
67- 140 324 04 04 140 321 09 84
==============================================================================================================================
Description: As required.
8
Rubber Boot Mercedes-Benz
Mercedes-Benz Description: Rear axle,left and right. As required. Upper left and right. Number of burls: 1 (8 mm).
8
MSRP $16.00
$12.35
8
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (8 mm).
MSRP $16.00
$12.35
MSRP $16.00
$12.35
8
MSRP $17.50
$13.65
8
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 4 (23 mm).
MSRP $17.50
$13.65
MSRP $17.50
$13.65
11
MSRP $1,840.00
$1,320.00
11
Hydropneumatic Spring Leg Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
Description: Range of delivery.
11
Suspension Strut Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
ONLY REPLACEABLE BY PAIRS
ONLY REPLACEABLE BY PAIRS
Description: Range of delivery.
11
Hydropneumatic Spring Leg Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
Description: Range of delivery.
11
Hydropneumatic Spring Leg Mercedes-Benz
Mercedes-Benz Notes: ONLY REPLACEABLE BY PAIRS
Description: Parts kit,rear.
23
Mounting Bracket Mercedes-Benz
Mercedes-Benz Description: Oil line to front hydropneumatic spring leg. To 140 997 00 82.
32
Screw Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to spring control arm. Shock absorber to spring control arm.
MSRP $9.00
$7.02
MSRP $9.00
$7.02
38
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
MSRP $7.50
$5.85
MSRP $7.50
$5.85
41
MSRP $5.50
$4.16
