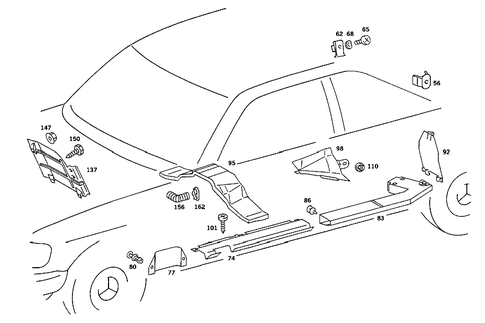

Cable Coverg. , Prot. Hoses, Electr. Parts for Blower Motor & Heated Rear Pane for 1988 Mercedes-Benz 560SEC
No.
Part # / Description / Price
Price
11
Bracket
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
NOT FOR R.S.A.
NOT FOR R.S.A.
Description: Blower resistor. Operating unit to heater case.
14
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
20
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
MSRP $2.00
$1.56
MSRP $2.00
$1.56
29
Nut Mercedes-Benz
Mercedes-Benz Description: Condenser to mounting plate. Resistor to fire wall. Amg vehicles. Bracket to right wheelhouse. Loudspeaker to bracket. Sliding/lifting roof plate to lifting angle bracket. Amplifier to bracket. Tail lamp to rear fender and to lower rear body panel additional stop light. Tail light left.
32
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Rear window pane to ground connection.
56
Line Connector Mercedes-Benz
Mercedes-Benz Description: Main cable harness to heating. Heated rear window pane cable. Windshield. Rear window pane connecting cable to cable harness in rear panel door. Terminal "58 d". Lighting of heater case operating unit. Heater case,left. Terminal "58d".
62
Nut Holder Mercedes-Benz
Mercedes-Benz Description: Tail lamp ground cable to wheel arch panel. Ground cable to rear pillar. Cable connector to rear pillar.
MSRP $10.50
$8.19
MSRP $10.50
$8.19
68
MSRP $0.90
$0.65
77
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Front panel pillar,bottom right. Cable covering to legroom side member. Rear floor,rear;between run and seat framework.
92
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cable harness to main floor below right rear seat.
92
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cable harness to main floor below left rear seat.
92
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cable harness to main floor below left rear seat.
101
MSRP $4.20
$3.25
137
143
Nut Mercedes-Benz
Mercedes-Benz Description: Insulation to fire wall,inside. Garnish moulding to covering. Mounting plate to fire wall. Footrest to fire wall. Ledge to covering. Covering below instrument panel,left. Covering to fire wall insulation. Panelling to front panel pillar. At bracket. Center panelling at door trim panel.
MSRP $1.00
$0.78
MSRP $1.00
$0.78
150
MSRP $1.40
$1.04
