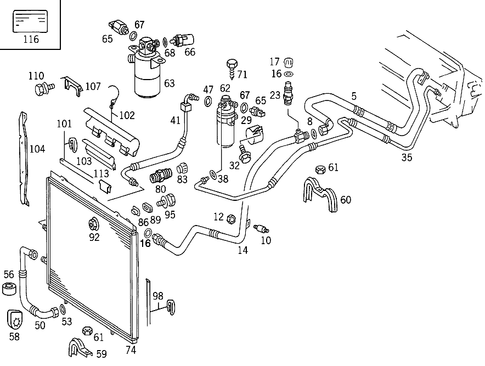

Refrigerant Line Arrangement for 1984 Mercedes-Benz 300SD
No.
Part # / Description / Price
Price
5
Piping
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: (suction line),from expansion valve to fire wall.
8
MSRP $4.30
$3.35
10
Rubber Bushing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: At right side member. Heater unit. At left side member. Bracket to wheel arch panel. Bracket to right wheelhouse. Pipe line to side member.
23
Valve Mercedes-Benz
Mercedes-Benz Description: To 140 830 36 15,34 15. To 140 830 40 15 / 38 15. Filling valve.
MSRP $30.00
$19.50
MSRP $30.00
$19.50
32
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
35
Piping Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Fluid-reservoir-to-expansion-valve refrigerant line.
38
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
MSRP $3.70
$2.86
MSRP $3.70
$2.86
50
MSRP $208.00
$153.76
53
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
58
Clamp Mercedes-Benz
Mercedes-Benz Description: HIGH PRESSURE HOSE TO FRAME. 25/15Inside diameter: 25mmMaterial thickness: 0,8mmModel 1: W1. 24mm. 25/15Inside diameter: 25mmMaterial thickness: 0,8mmModel 1: W1. LEFT REAR. 25/15Inside diameter: 25mmMaterial thickness: 0,8mmModel 1: W1. Muffler. 25/15Insi ...
MSRP $9.00
$7.02
MSRP $9.00
$7.02
65
MSRP $199.00
$147.56
66
Temperature Sensor Mercedes-Benz
Mercedes-Benz Description: At liquid tank,for additional blower. Outdoor temperature sensor.
67
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Pressure switch to liquid tank used for additional blower. 9.0 x 1.8 mm. Pressure switch to liquid tank used for compressor. 9.0 x 1.8 mm. At liquid tank. 9.0 x 1.8 mm. Refrigerant reservoir valve. 9.0 X 1.8 MM. Sensor. 9.0 x 1.8 mm.
71
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M5x10.5. At blower;temperature sensor ventilation. Bracket to fire wall. Heat shield mounting. Control unit. Screening plates. Main floor,front right. Return line to partition panel.
MSRP $0.70
$0.52
MSRP $0.70
$0.52
80
Discharge Line Valve Mercedes-Benz
Mercedes-Benz Description: Condenser. To 140 830 05 70. To 129 830 02 70,129 830 04 70. Filling valve. In pressure line.
MSRP $22.50
$17.54
MSRP $22.50
$17.54
89
MSRP $3.40
$2.60
92
Nut Mercedes-Benz
Mercedes-Benz Description: Blower to cooling module. Condenser and blower to radiator.
MSRP $4.90
$3.77
MSRP $4.90
$3.77
95
Screw Mercedes-Benz
Mercedes-Benz Description: SWITCH ON BLOWER CASEDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. CONDENSER TO RADIATORDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. IGNITION COIL TO BRACKETDiameter: 6mmStrength / ...
MSRP $7.50
$5.72
MSRP $7.50
$5.72
98
Seal Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between condenser and radiator,top 112 mm. Between condenser and radiator,top 350 mm.
104
Holder Mercedes-Benz
Mercedes-Benz Description: Additional blower to condenser. Additional blower to additional blower.
110
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Description: To 140 470 01 47. Bracket to auxiliary blower m 5x12. Bracket to whelhouse flange. Additional blower to condenser.
113
Intermediate Layer Mercedes-Benz
Mercedes-Benz Description: Additional blower to condenser. Condenser to radiator.
MSRP $19.50
$14.95
MSRP $19.50
$14.95
No.
Part # / Description / Price
Price
32
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
